SAFE'n'SOUND®

Fire & Soundproof Insulation

ROCKWOOL SAFE‘n’SOUND® is a stone wool insulation product for use in interior wall partitions of residential wood and steel stud construction. It is especially useful when superior fire resistance and acoustical performance are required.

Back

SAFE‘n’SOUND Fire & Soundproof Insulation

SAFE‘n’SOUND® sound proof insulation is a stone wool insulation product for use in interior wall partitions of residential wood and steel stud construction. It is especially useful when superior fire resistance and acoustical performance are required.

This non-combustible, lightweight product has excellent acoustical dampening properties and is dimensionally stable which makes it ideal for friction fit in wall, ceiling and floor applications. The product is chemically inert; therefore it will not promote corrosion.

Properties:

  • Easily cut
  • Non-combustible with a melting point of approximately 1177°C (2150°F)
  • Excellent sound absorbency
  • Fire-resistant due to its high melting temperature
  • Does not rot or promote the growth of fungi or mildew
  • Low moisture sorption
  • Water and moisture resistant; does not absorb moisture to maintain insulating value
Back

Specification & sizes

Compare
Compliance ASTM C665 - CAN/ULC S702
ASTM C665 Mineral Fiber Blanket Thermal Insulation, Type 1 Compliant
CAN/ULC S702 Mineral Fiber Thermal Insulation for Buildings, Type 1 Compliant
  UL GREENGUARD CERTIFIED
  ULC LISTED
  CLASSIFIED C UL US
  CLASSIFIED UL
Density ASTM C167
ASTM C167 Actual Density - 2.5 lb/ft³ (40 kg/m³)
Dimensions
Wood Stud 16" (406mm) on center: 15.25" x 47" (387 mm x 1194 mm)
Wood Stud 24" (610mm) on center: 23" x 47" (584 mm x 1194 mm)
Steel Stud 16" (406mm) on center: 16.25" x 48" (413 mm x 1219 mm)
Steel Stud 24" (610mm) on center: 24.25" x 48" (616 mm x 1219 mm)
Thickness

3" (76 mm)

Acoustical Performance ASTM C423
Thickness 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
3" 0.52 0.96 1.18 1.07 1.05 1.05 1.05
Back
ASTM C665 Mineral Fiber Blanket Thermal Insulation, Type 1 Compliant
CAN/ULC S702 Mineral Fiber Thermal Insulation for Buildings, Type 1 Compliant
  UL GREENGUARD CERTIFIED
  ULC LISTED
  CLASSIFIED C UL US
  CLASSIFIED UL
Back
ASTM C167 Actual Density - 2.5 lb/ft³ (40 kg/m³)
Back
Wood Stud 16" (406mm) on center: 15.25" x 47" (387 mm x 1194 mm)
Wood Stud 24" (610mm) on center: 23" x 47" (584 mm x 1194 mm)
Steel Stud 16" (406mm) on center: 16.25" x 48" (413 mm x 1219 mm)
Steel Stud 24" (610mm) on center: 24.25" x 48" (616 mm x 1219 mm)
Back

3" (76 mm)

Back
Thickness 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
3" 0.52 0.96 1.18 1.07 1.05 1.05 1.05

Product Range

Construction

Item number Country Thickness (inch) Width (inch) Length (inch) Pieces Per Pack Packs Per Pallet Framing width Construction
169028 CA/US 3 15.25 47 12 12 16" OC Wood Stud
169034 CA/US 3 16.25 48 12 12 16" OC Steel Stud
169031 CA/US 3 23 47 8 12 24" OC Wood Stud
169037 CA/US 3 24.25 48 8 12 24" OC Steel Stud

We can't find any results that match your search

Load More
Back

Tools, Guides & Downloads





print pdf
icon

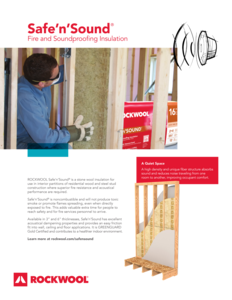

SAFE'n'SOUND Fire and Soundproofing Insulation- Techdata
