ROCKWOOL ROXUL Safe
Firestopping Metal Building Curtain Wall Interior wall Insulation Exterior Walls Insulation Wood Frame Construction Insulation

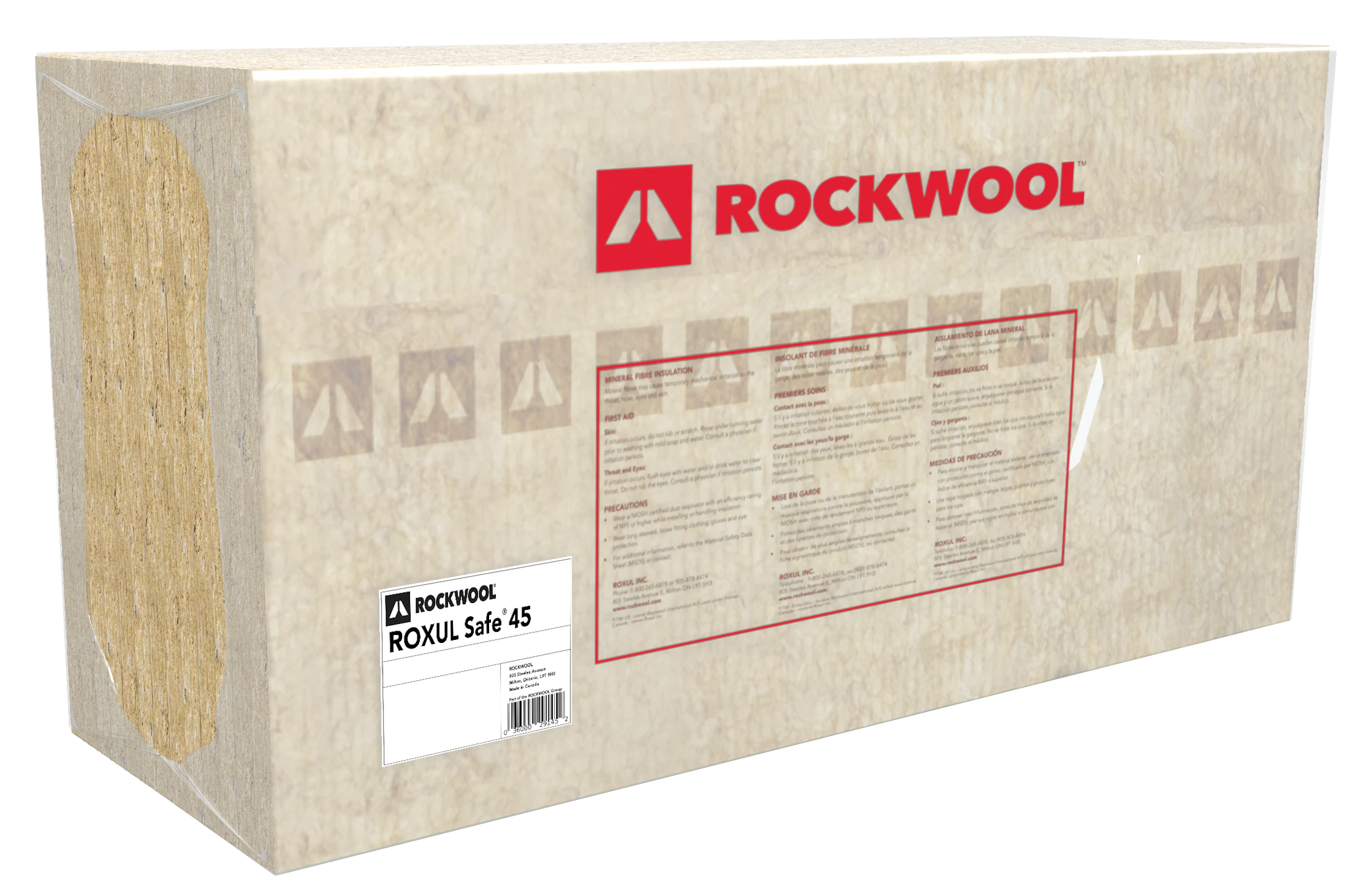

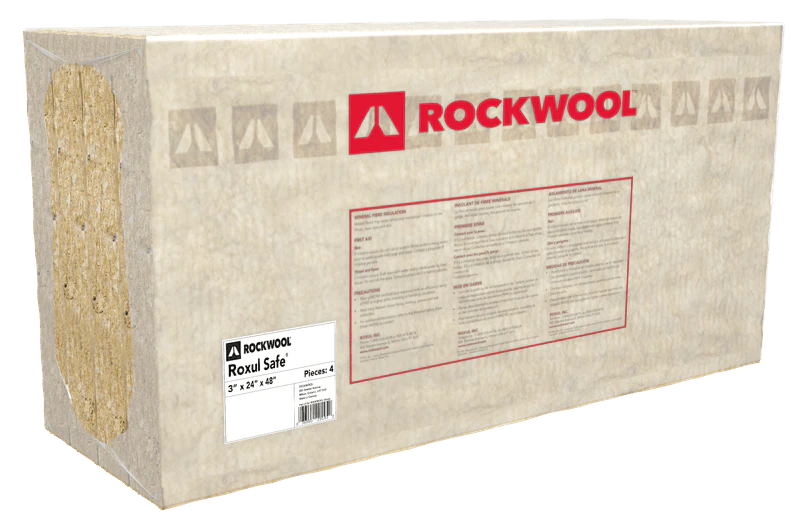

ROXUL SAFE™

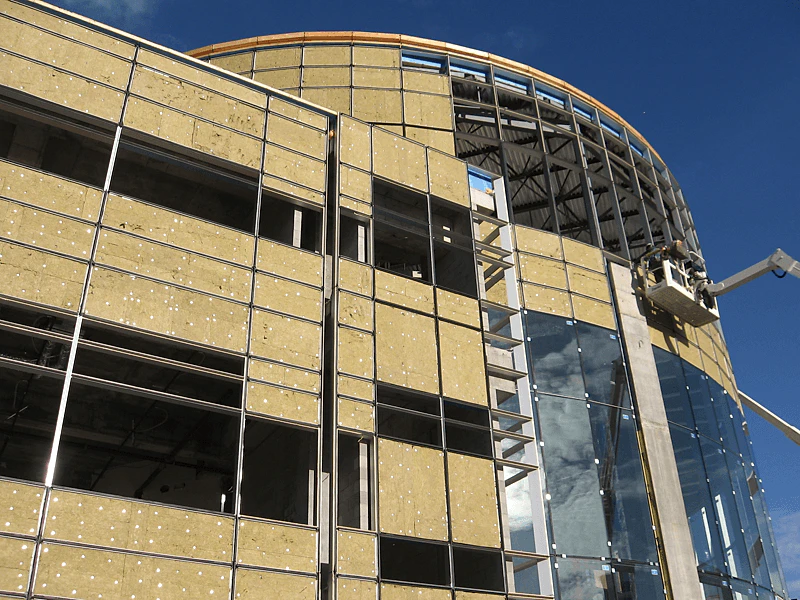

ROXUL SAFE™ is a lightweight, semi-rigid stone wool insulation that provides superior fire resistance and sound control. ROXUL SAFE™ is UL and Intertek approved as a forming material for numerous firestop systems. This product is designed to fill perimeter gaps between concrete floor slabs and exterior wall systems, between firewalls and ceiling slabs, and around conduit pipes and duct openings through walls and floor slabs.

Back

ROXUL SAFE™ is a lightweight, semi-rigid stone wool insulation that provides superior fire resistance and sound control.

ROXUL SAFE™ is UL and Intertek approved as a forming material for numerous firestop systems. This product is designed to fill perimeter gaps between concrete floor slabs and exterior wall systems, between firewalls and ceiling slabs, and around conduit pipes and duct openings through walls and floor slabs.

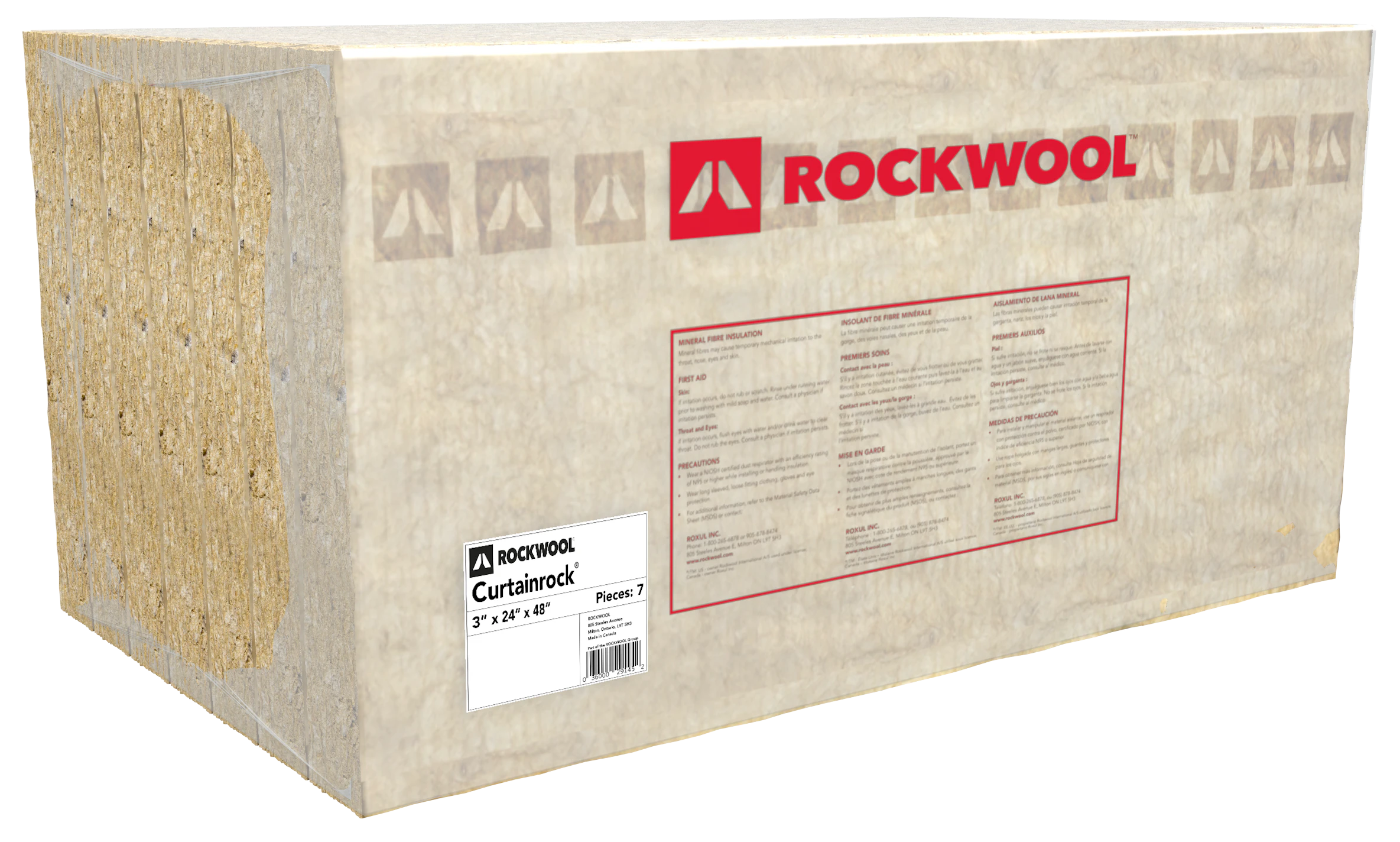

Together, ROXUL SAFE™ and CURTAINROCK® 40/80 provide a comprehensive critical line of defense in fire protection that has been UL/ULC tested and approved for perimeter fire containment.

Properties:

  • Non-combustible stone wool insulation with melting point of approx. 1177°C (2150°F)
  • Does not promote smoke or flame spread when exposed to flame
  • Minimal shrinkage to maintain critical line of defense against fire
  • Low thermal conductivity
  • Water and moisture resistant; does not absorb moisture to maintain insulating value
  • Does not rot or promote the growth of mildew, fungi or bacteria
  • Can be faced with reinforced foil facings
  • ROCKWOOL® can contribute to earning LEED® points
Back

Specification & sizes

Compare
Compliance ASTM C612 - 339-97-M
ASTM C612 Mineral Fiber Block and Board Thermal Insulation - Type IVA Compliant
339-97-M MEA Approval, New York City Approval
Density ASTM C303
ASTM C303 Actual Density - 4.5 lb/ft³ (72 kg/m³)
Dimensions
24" x 48" (610 mm x 1219 mm)
Thickness
Product is available in 2", 3" and 4" (50.8 mm, 76.2 mm and 101.6 mm)
Reaction to fire ASTM E84 (UL 723) - CAN/ULC S102 - CAN/ULC S114 - ASTM E136 - CAN/ULC S115 - ASTM E814 (UL 1479) - UL 2079 - ASTM E2307/E119 - CAN/ULC S129
ASTM E84 (UL 723) Flame spread index = 0 ; Smoke developed index = 0
CAN/ULC S102 Flame spread index = 0 ; Smoke developed index = 0
CAN/ULC S114

Determination of Non-Combustibility of Building Materials - Non-Combustible

ASTM E136 Determination of Non-Combustibility of Building Materials - Non-Combustible
CAN/ULC S115 Fire Tests of Firestop Systems
ASTM E814 (UL 1479) Fire Tests of Penetration of Firestop Systems
UL 2079 Tests for Fire Resistance of Building Joint Systems
ASTM E2307/E119 Perimeter Fire Barrier Systems
CAN/ULC S129 Smolder Resistance - 0.01%
Consult UL, ULC and Intertek Directories for fire rated designs
Reaction to moisture ASTM C1104 - ASTM C1338
ASTM C1104 Moisture Sorption - 0.04%
ASTM C1338 Determination of Fungi Resistance - Passed
Corrosion Resistance ASTM C795 - ASTM C665
ASTM C795 Stress Corrosion Cracking Tendency of Austenitic Stainless Steel - Passed
ASTM C665 Corrosion of Steel - Passed
Back
ASTM C612 Mineral Fiber Block and Board Thermal Insulation - Type IVA Compliant
339-97-M MEA Approval, New York City Approval
Back
ASTM C303 Actual Density - 4.5 lb/ft³ (72 kg/m³)
Back
24" x 48" (610 mm x 1219 mm)
Back
Product is available in 2", 3" and 4" (50.8 mm, 76.2 mm and 101.6 mm)
Back
ASTM E84 (UL 723) Flame spread index = 0 ; Smoke developed index = 0
CAN/ULC S102 Flame spread index = 0 ; Smoke developed index = 0
CAN/ULC S114

Determination of Non-Combustibility of Building Materials - Non-Combustible

ASTM E136 Determination of Non-Combustibility of Building Materials - Non-Combustible
CAN/ULC S115 Fire Tests of Firestop Systems
ASTM E814 (UL 1479) Fire Tests of Penetration of Firestop Systems
UL 2079 Tests for Fire Resistance of Building Joint Systems
ASTM E2307/E119 Perimeter Fire Barrier Systems
CAN/ULC S129 Smolder Resistance - 0.01%
Consult UL, ULC and Intertek Directories for fire rated designs
Back
ASTM C1104 Moisture Sorption - 0.04%
ASTM C1338 Determination of Fungi Resistance - Passed
Back
ASTM C795 Stress Corrosion Cracking Tendency of Austenitic Stainless Steel - Passed
ASTM C665 Corrosion of Steel - Passed
