Interior wall Insulation Steel stud interior wall

ROCKWOOL AFB®

ROCKWOOL AFB® is a lightweight, semi-rigid batt insulation specifically designed for steel stud interior wall and floor applications.

Back

ROCKWOOL AFB® is a lightweight, semi-rigid batt insulation specifically designed for steel stud interior wall and floor applications.

This stone wool-based insulation is made from natural stone and recycled content. It's a sustainable product that provides superior sound absorbency and fire protection for overall occupant comfort and safety. That's why AFB is quickly becoming the insulation of choice for today's green builders in commercial and industrial construction.

The AFB product comes in a number of thicknesses to meet the requirements of both retrofit and new construction applications.

Also available, AFB evo™ is a no added formaldehyde version of ROCKWOOL AFB insulation.

Back

Specifications & sizes

Compare
Compliance CAN/ULC S702, ASTM C655 - ASTM C553 - MEA - LA
CAN/ULC S702 Mineral Fiber Thermal Insulation for Buildings, Type 1 Compliant
ASTM C665 Mineral Fiber Blanket Thermal Insulation, Type 1 Compliant
ASTM C553 Mineral Fiber Blanket Thermal Insulation, Type 7 Compliant
338-97-M MEA Approval, New York City Approval
RR 25444 City of Los Angeles Approval
Density ASTM C303
ASTM C303 Actual Density at thicknesses < 3" (76.2 mm) - 2.8 lb/ft³ (45 kg/m³)
Dimensions
16" x 48" (413 mm x 1219 mm)
24" x 48" (610 mm x 1219 mm)
Reaction to fire ASTM E84 (UL 723) - CAN/ULC S102 - CAN/ULC S114 - ASTM E136 - CAN/ULC S129
ASTM E84 (UL 723) Flame spread index = 0 ; Smoke developed index = 0
CAN/ULC S102 Flame spread index = 0 ; Smoke developed index = 0
CAN/ULC S114 Determination of Non-Combustibility of Building Materials - Non-Combustible
ASTM E136 Behavior of materials at 750°C - Non-Combustible
CAN/ULC S129

Smolder Resistance - 0.09%

Acoustical Performance ASTM C423
Thickness 125 Hz 250 Hz 500 Hz 1000 Hz 2000Hz 4000 Hz NRC
1.0" 0.14 0.25 0.65 0.9 1.01 1.01 0.7
1.5" 0.18 0.44 0.94 1.04 1.02 1.03 0.85
2" 0.28 0.6 1.09 1.09  1.05 1.07 0.95
3" 0.52 0.96 1.18 1.07 1.05 1.05 1.05
4" 0.86 1.11 1.2 1.07 1.08 1.07 1.1
Back
CAN/ULC S702 Mineral Fiber Thermal Insulation for Buildings, Type 1 Compliant
ASTM C665 Mineral Fiber Blanket Thermal Insulation, Type 1 Compliant
ASTM C553 Mineral Fiber Blanket Thermal Insulation, Type 7 Compliant
338-97-M MEA Approval, New York City Approval
RR 25444 City of Los Angeles Approval
Back
ASTM C303 Actual Density at thicknesses < 3" (76.2 mm) - 2.8 lb/ft³ (45 kg/m³)
Back
16" x 48" (413 mm x 1219 mm)
24" x 48" (610 mm x 1219 mm)
Back
ASTM E84 (UL 723) Flame spread index = 0 ; Smoke developed index = 0
CAN/ULC S102 Flame spread index = 0 ; Smoke developed index = 0
CAN/ULC S114 Determination of Non-Combustibility of Building Materials - Non-Combustible
ASTM E136 Behavior of materials at 750°C - Non-Combustible
CAN/ULC S129

Smolder Resistance - 0.09%

Back
Thickness 125 Hz 250 Hz 500 Hz 1000 Hz 2000Hz 4000 Hz NRC
1.0" 0.14 0.25 0.65 0.9 1.01 1.01 0.7
1.5" 0.18 0.44 0.94 1.04 1.02 1.03 0.85
2" 0.28 0.6 1.09 1.09  1.05 1.07 0.95
3" 0.52 0.96 1.18 1.07 1.05 1.05 1.05
4" 0.86 1.11 1.2 1.07 1.08 1.07 1.1

Product Range

Item number Country Thickness (inch) Width (inch) Length (inch) Pieces Per Pack Packs Per Pallet
168673 CA/US 1 16 48 32 12
168671 CA/US 1 24 48 24 12
138674 CA/US 1.5 16 48 18 11
168672 CA/US 1.5 24 48 16 12
168648 CA/US 2 24 48 12 9
168651 CA/US 2.5 16 48 12 12
168652 CA/US 2.5 24 48 10 12
168657 CA/US 3 15 48 12 12
168649 CA/US 3 16 48 12 12
168650 CA/US 3 24 48 8 12
168653 CA/US 3.5 16 48 10 12
168654 CA/US 3.5 24 48 7 12
168655 CA/US 4 16 48 8 12
168656 CA/US 4 24 48 6 12
168660 CA/US 5 16 48 6 12
168661 CA/US 5 24 48 5 12
168658 CA/US 6 16 48 6 12
168659 CA/US 6 24 48 4 12

We can't find any results that match your search

Load More
Back

Tools, Guides & Downloads





print pdf docx
icon

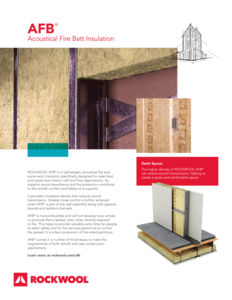

AFB Acoustical Fire Batts - Techdata
AFB Acoustical Fire Batts - Techdata

icon

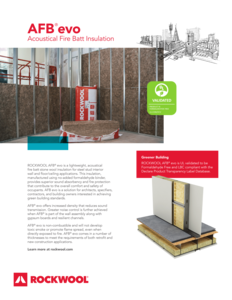

AFB evo Formaldehyde-Free - Techdata
AFB evo Formaldehyde-Free - Techdata

icon

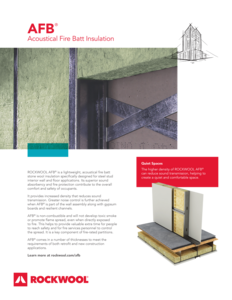

AFB Acoustical Fire Batts (Steel Studs) - Brochure
