Conrock®
ROCKWOOL Conrock® is a stone wool insulation board designed for use in Sandwich Wall Panel (SWP) applications. Conrock® can be engineered to fit your dimensions and provides excellent thermal and fire resistance properties.
1/2
Popular applications
- OEM insulation
About this product
ROCKWOOL Conrock® is a rigid insulation board designed specifically for application in Sandwich Wall Panel (SWP) systems where excellent thermal and fire resistance properties are required.
Conrock® has excellent sound-dampening properties, is dimensionally stable, vapor permeable and will not encourage the growth of mold. Noncombustible, stone wool does not promote smoke or flame spread when exposed to flame.
- Noncombustible and fire resistant
- Water and moisture repellent
- Excellent acoustic performance
- Inorganic, does not promote mold growth
Why use stone wool insulation
- Noncombustible and fire resistant, stone wool works to contain a fire and prevent its spread.
- Stone wool provides excellent noise reduction and sound absorption to help you create quieter, more productive environments.
- Easily fabricated, our OEM solutions are versatile to service a variety of applications and help you meet specification and optimize fit for use.
- Durable inorganic material that does not rot or promote the growth of mildew, fungi or bacteria
Applications
- Designed for use in sandwich panel systems.
- Durable insulation for industrial applications.
- Improves installation efficiency and safety in industrial buildings.
Product certificates
Conrock® sizes, dimensions & packaging
Find Conrock® thickness, width, length and pack quantities—everything you need for accurate specification and ordering.
- All
- 1
- 2
- 3
- 4
- 4.1
- 5
- 6
Specifications & testing
Explore Conrock® specifications and test results, based on relevant industry standards.
| Name | Value | Unit | Test standard |
|---|---|---|---|
| Mineral Fiber Block and Board Thermal Insulation | Type IVB Compliant | ASTM C612 | |
| Mineral Fiber Thermal Insulation for Buildings | Type 1 Compliant | CAN/ULC S702 | |
| Flame spread index | 0 | ASTM E84 | |
| Smoke Developed Index | 0 | ASTM E84 | |
| Determination of Non Combustibility of Building Materials | Non-combustible | CAN/ULC S114 | |
| Corrosion of Steel | Passed | ASTM C665 | |
| Density | 8.5 | lbs/ft3 | ASTM C167 |
| Density | 136 | kg/m3 | ASTM C167 |
| R-Value / inch @ 75 °F | 4 | hr.ft².F/Btu | ASTM C518 (C177) |
| RSI value / 25.4 mm @ 24 °C | 0.7 | m²K/W | ASTM C518 (C177) |
| Determination of Fungi Resistance | Passed | ASTM C1338 | |
| Compressive resistance description | 45 kPa (6.5 psi) @ 10% compression (based on 4” board) |
Conrock® technical documents & resources
Download Conrock® technical documents and resources, including the product data sheet, to support accurate specification and efficient project planning.
OEM application guide
Recommended Core Solution Products and Application Guide

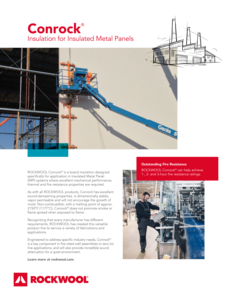

Conrock sandwich wall panel insulation - Data sheet
