Curtain Wall Exterior Walls Insulation

ROCKWOOL Curtainrock ®

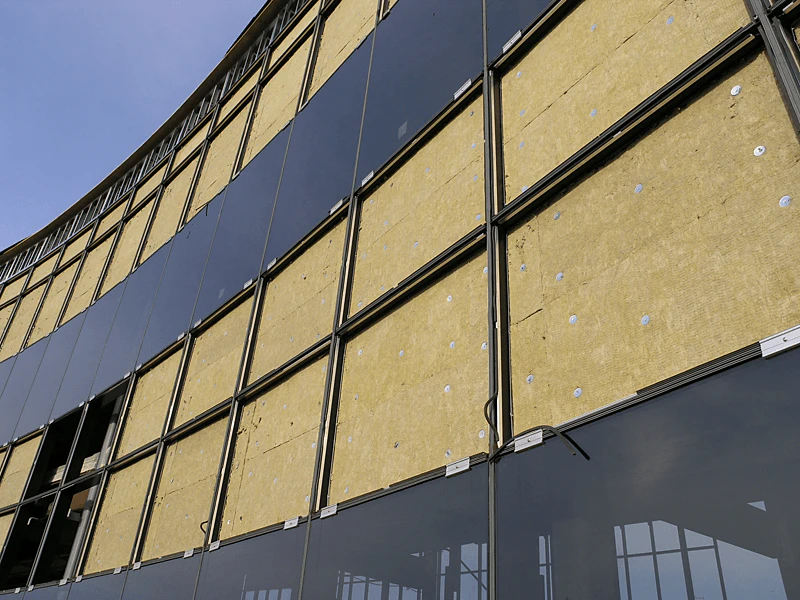

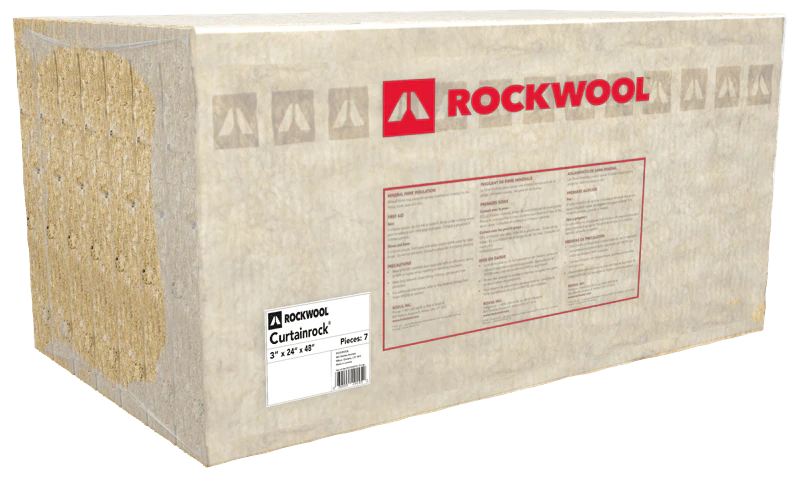

ROCKWOOL Curtainrock is a lightweight, semi-rigid stone wool insulation board designed to provide enhanced fire protection in curtain wall and perimeter fire containment systems. Curtainrock is available unfaced or with vapor retarding foil facing.

Available as both an unfaced and foil faced board in multiple density options

Back
Back

Specification & sizes

Compliance Curtainrock – Type IVA Compliant | Curtainrock 40/80 Type IVB Compliant
Density Curtainrock – Actual 3.5 lbs/ft3 | Curtainrock 40 – Nominal 4 lbs/ft3 | Curtainrock 80 – Nominal 8 lbs/ft3
Dimensional stability Curtainrock – < 2% @ 1200F | Curtainrock 40/80 – < 1% @ 1200F
Dimensions Curtainrock product size table


Curtainrock (CANADA only)

Curtainrock 40

Curtainrock 80

Facing

Unfaced

Unfaced or foil

Unfaced or foil

Thicknesses

1”, 1.5”, 2”, 3”, 4”, 5”, 6”

1.5”, 2”, 2.5”, 3”, 3.5”, 4”, 4.5”, 5”, 6”, 7”

1.5”, 2”, 2.5”, 3”, 3.5”, 4”, 4.5”, 5”, 6”, 7”

Dimensions

24” x 48”

24” x 60” is available in 2”, 3” and 4” thicknesses

24” x 48”

36” x 60”

48” x 72”

24” x 48”

36” x 60”

48” x 60”

48” x 72”

Reaction to fire Non-combustible, Flame Spread = 0, Smoke Development = 0
Thermal resistance Curtainrock – R4.2 per inch | Curtainrock 40/80 – R4.3 per inch
Acoustical Performance Curtainrock: NRC = 1.05 (3” thickness)
Reaction to moisture ASTM C1104 - ASTM E96 - ASTM C1338
Corrosion Resistance ASTM C795 - ASTM C665
Back
Back
Back
Back


Curtainrock (CANADA only)

Curtainrock 40

Curtainrock 80

Facing

Unfaced

Unfaced or foil

Unfaced or foil

Thicknesses

1”, 1.5”, 2”, 3”, 4”, 5”, 6”

1.5”, 2”, 2.5”, 3”, 3.5”, 4”, 4.5”, 5”, 6”, 7”

1.5”, 2”, 2.5”, 3”, 3.5”, 4”, 4.5”, 5”, 6”, 7”

Dimensions

24” x 48”

24” x 60” is available in 2”, 3” and 4” thicknesses

24” x 48”

36” x 60”

48” x 72”

24” x 48”

36” x 60”

48” x 60”

48” x 72”

Back
Back
Back
Back
Back
Back
product page download icon
PDF
376.9 KB

Curtainrock 40 Data Sheet

product page download icon
PDF
350.6 KB

Curtainrock 80 Data Sheet

product page download icon
PDF
1.0 MB

Perimeter Fire Containment System Product and Service Guide

product page download icon
PDF
3.1 MB

Perimeter Fire Containment System Technical Guide

Tools, Guides & Downloads





print pdf
icon
Perimeter Fire Containment System - Product and Service Guide
Perimeter Fire Containment System - Product and Service Guide

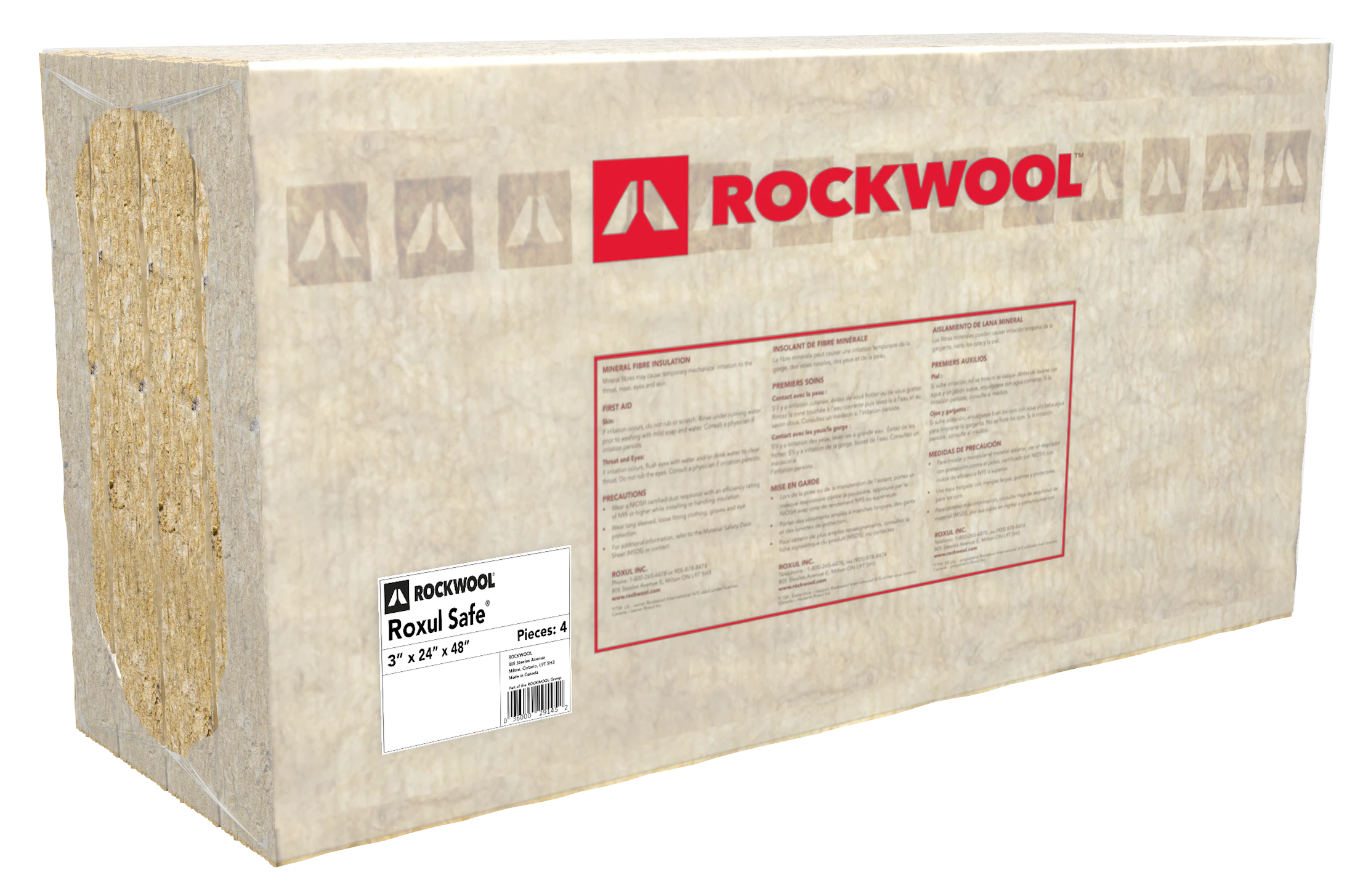

ROCKWOOL offers a variety of products for UL and Intertek listed perimeter fire containment systems, including Curtainrock® 40/80 and ROXUL Safe®. Learn more about these products, the fire resiliency advantage and the role our stone wool insulation plays in a comprehensive set of ASTM E2307-tested systems.
