Passive fire protection External Wall

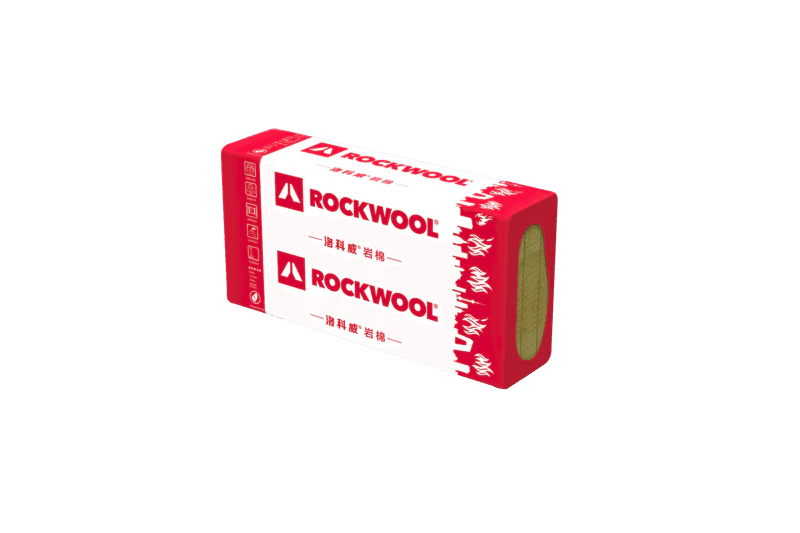

CurtainRock

ROCKWOOL CurtainRock stone wool products are used as filling material for wall between windows, windowsill wall and other parts of curtain wall system, also as the fire-resisting division for the layers or curtain wall unit.

Back
Back

Product properties

Compare
Surface Burning Characteristic FSI 0; SD 0 (ASTM E84)
Formaldehyde Emission ≤5mg/L (GB/T 17657-1999)
Thermal Shrinkage(650℃) Less than 2%(ASTM C356)
Fire performance A1 Class (GB/T 8624-2012)
Thermal conductivity ≤0.034 W/(m.K) (GB/T 10295,ASTM C518)
Water Vapor Sorption by Weight Less than 0.04% (ASTM C1104/1104M)
Water Vapor Sorption by Volume Less than 0.1%(50℃,95%RH,96 Hour) (GB/T 5480)
Antibiosis Non support fungi growth (ASTM 1338)
Back
Back
Back
Back
Back
Back
Back
Back

Specification & sizes

Product density and thickness can be customized according by needs.

Product Description Thickness (mm) Width (mm) Length (mm)
CurtainRock 110 110kg/m3 50 600 1200
CurtainRock 128 128kg/m3 50 600 1200
