SCB
Sleeved Cavity Barrier (SCB) is a cavity fire barrier for masonry cavity walls, made from stone wool.
1/5
Application(s)
- External Wall
- Fire Protection
- Cavity Wall
- Steel Frame
- Cavity Barriers & Cavity Firestops
- Timber Frame
Product description

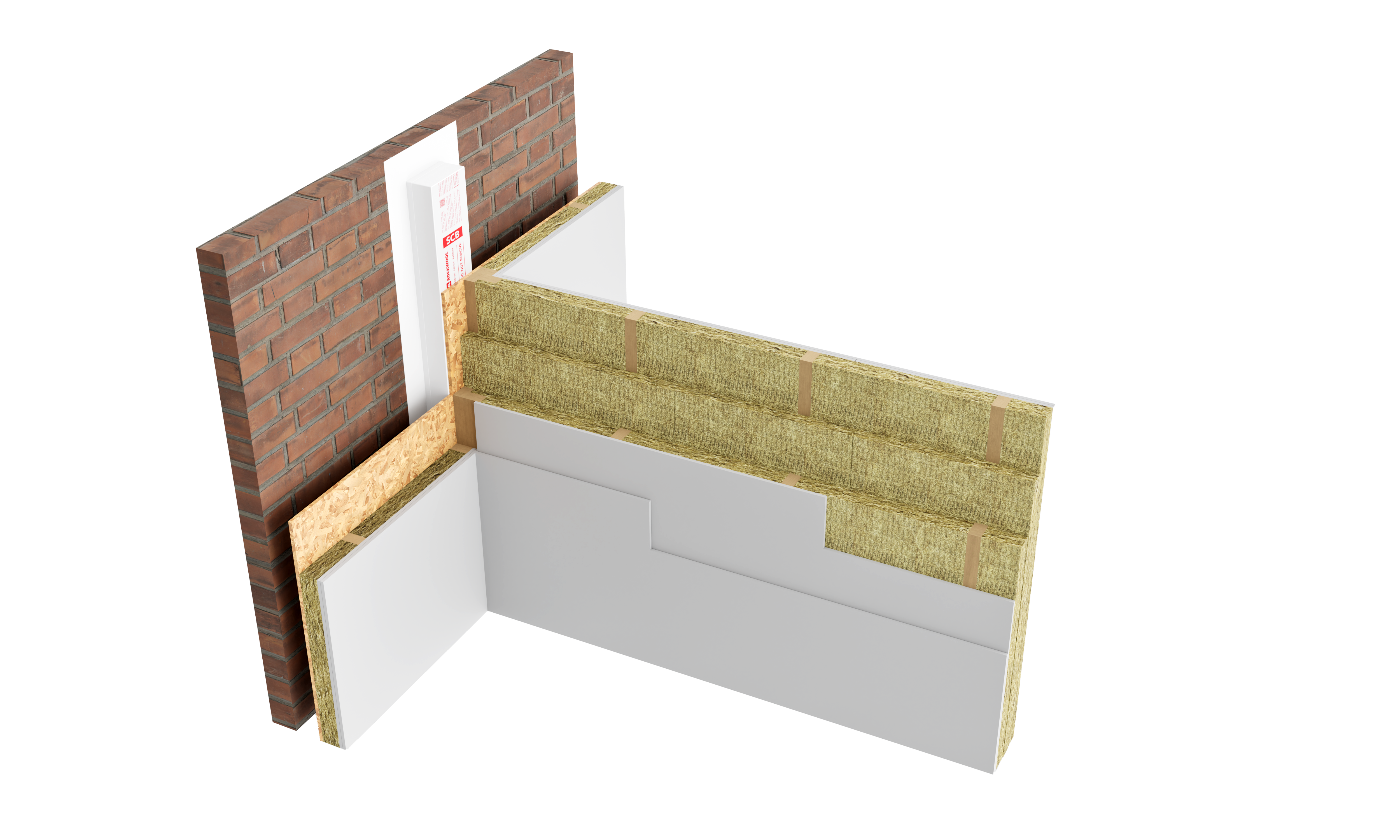

ROCKWOOL® SCB consists of stone wool insulation strips encapsulated in a protective polythene sleeve. Fitted under compression, the product inhibits the passage of smoke and fire within masonry cavities in timber and steel frame constructions. When used to close the junction between a party wall and the external cavity, SCB creates an effective perimeter edge seal, which reduces heat loss by restricting air flow around the exposed edges of the party wall cavity. The SCB is a flexible closer that can trap sound waves which will help to reduce flanking transmission through cavities.
- Tested in accordance with BS EN 1366-4:2021
- Classified in accordance with BS EN 13501-2:2016, testing to BS EN 1364-4:2021.
- Complies with the requirements of I.S. 440: 2009+A1:2014
Areas of application
Application for ROCKWOOL SCB are:

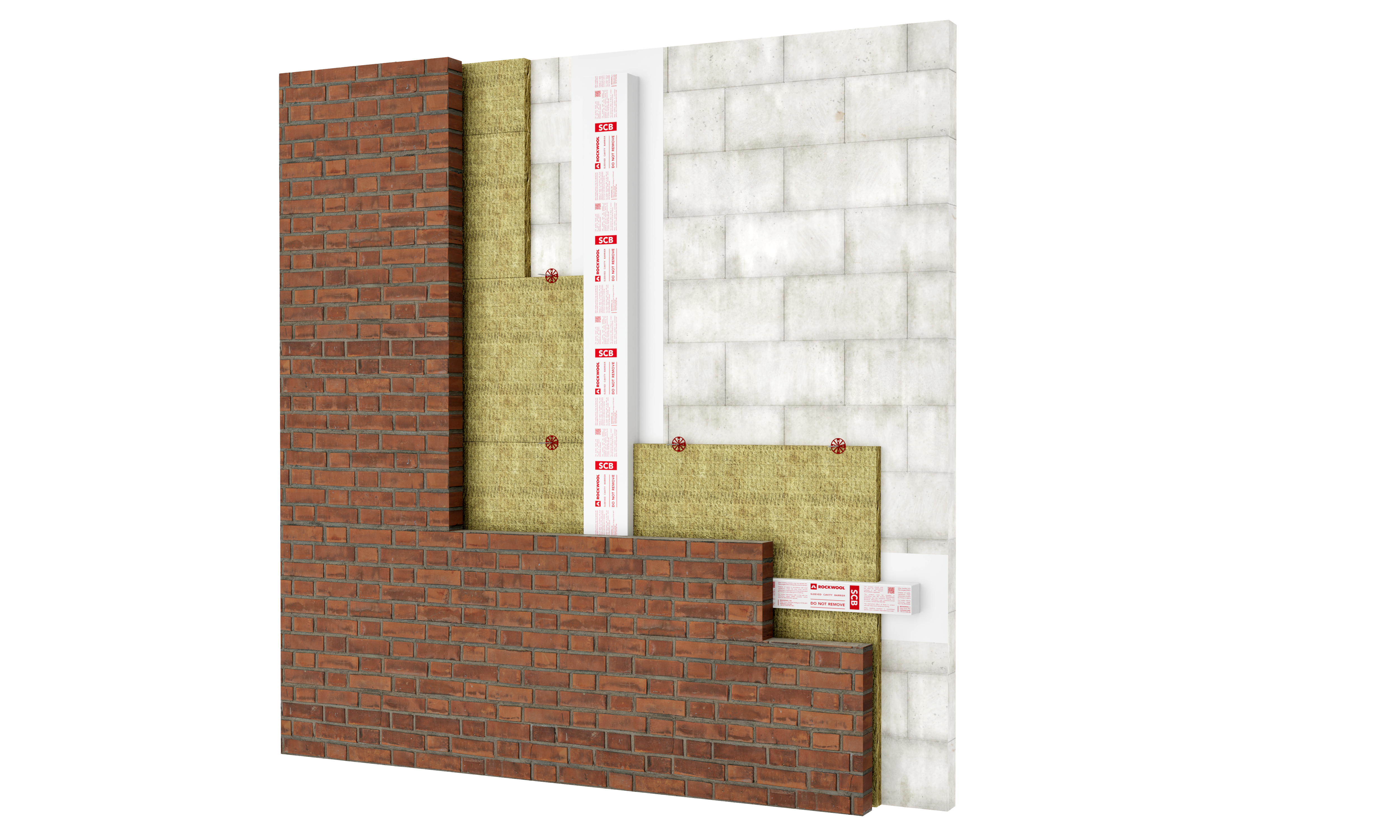

Masonry cavities between a masonry outer leaf and the following substrate types:
- Masonry

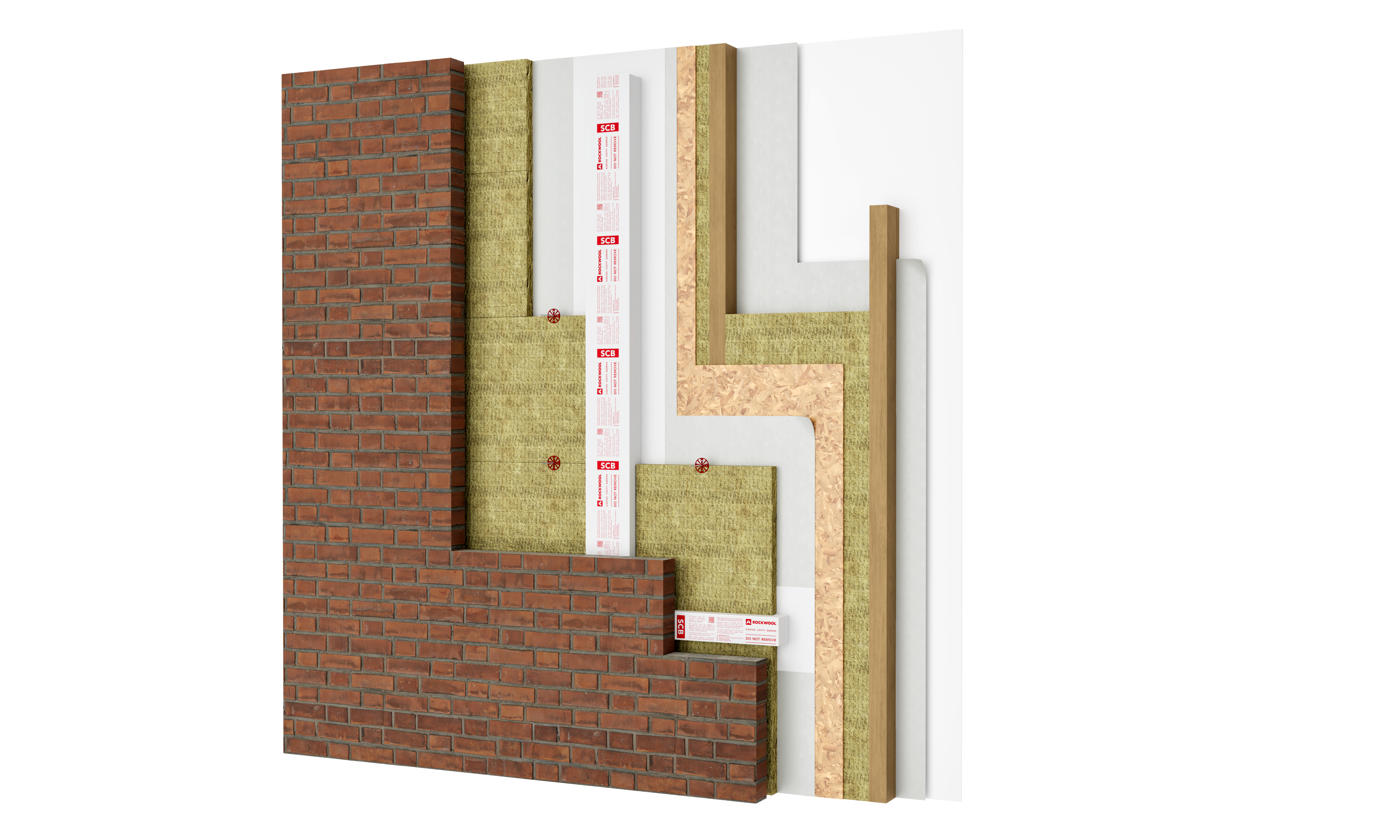

- Timber frame faced with OSB

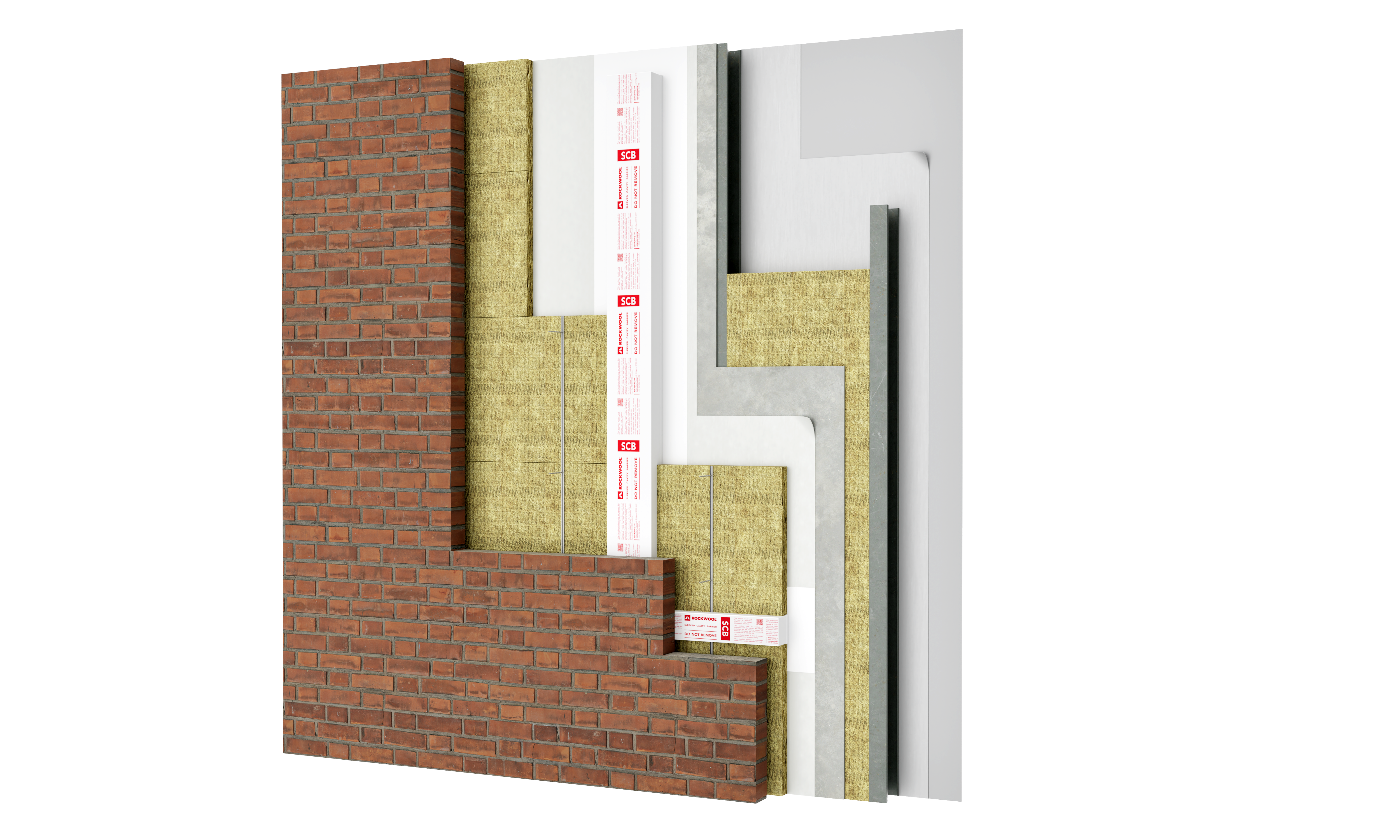

- Steel frame faced with cement particle board
Documentation

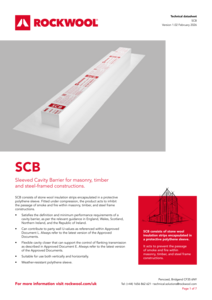

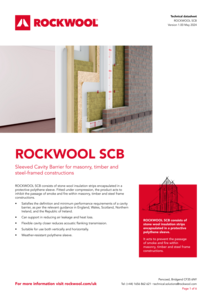

SCB Datasheet
Sleeved Cavity Barrier (SCB) is a cavity fire barrier for masonry cavity walls made from stone wool.
SCB UL-791060701.1
Certificate No. SCB-UL-791060701.1
SCB UL-791060701.1 - Classification Report
SCB UL-791060701.1 - This classification report defines the classification assigned to the element ROCKWOOL® SCB, in accordance with the procedures given in BS EN 13501-2: 2016.
SUIS ROCKWOOL UK
Safe use instruction sheet ROCKWOOL stone wool insulation products
Republic of Ireland Price List
Price List March 2025
UK Price List
Price List March 2025
Certificates
Product properties
| Name | Value | Test standard | Symbol |
|---|---|---|---|
| Reaction to Fire | NPD | EN 13501-1 | |
| Long term water absorption | EN 12087 | WL(P) | |
| Short term water absorption | NPD | EN 1609 | WS |
| Product standard | |||
| Facing type, side 1 | PE |
Product variants
