FirePro® Pipe Collars CE
FirePro® Pipe Collar CE seals service penetration apertures containing plastic pipework by providing a high-volume expansion and pressure seal during a fire.
1/1
Application(s)
- Fire Protection
- Penetration Seals
Product description

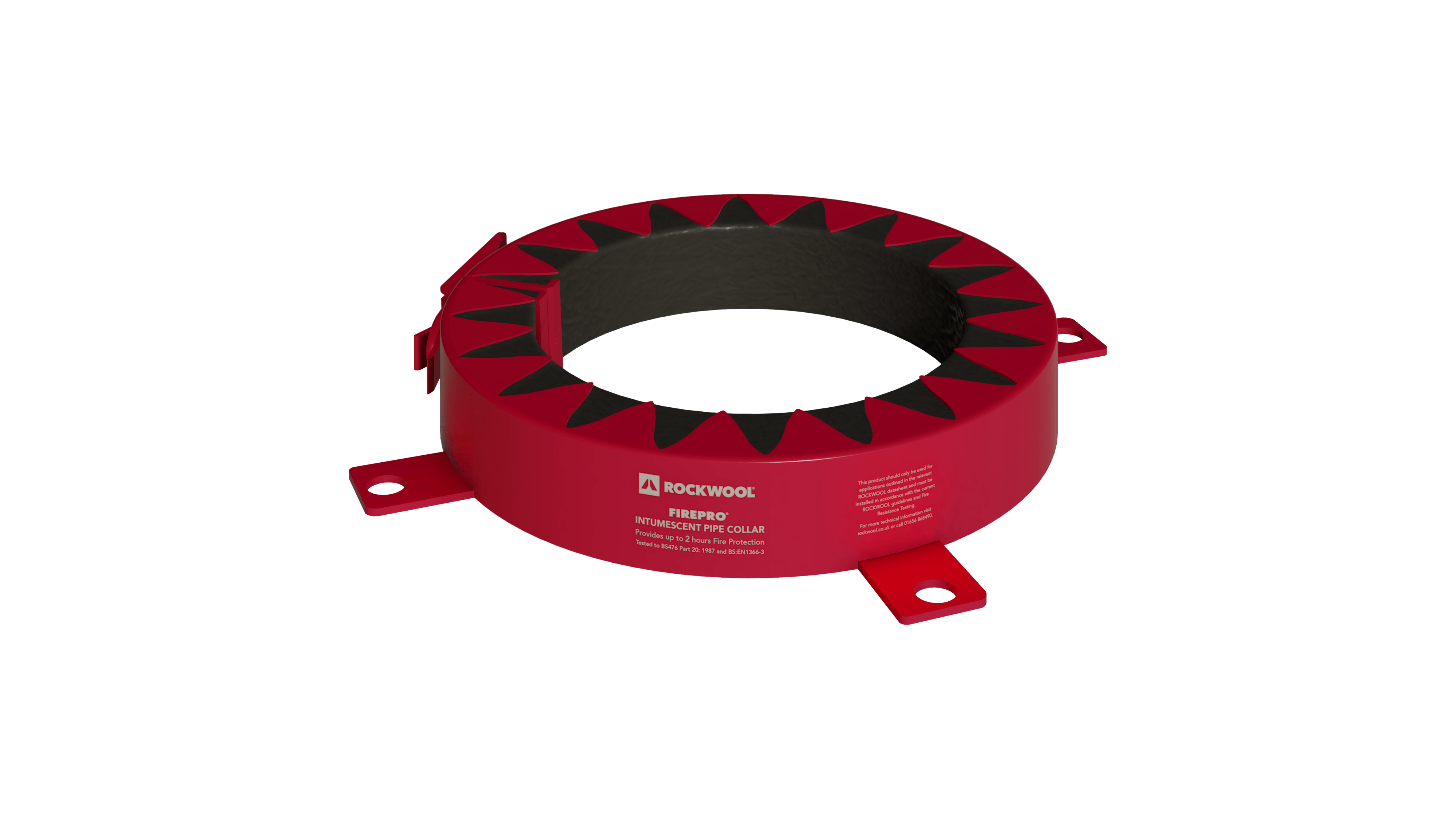

The FirePro Pipe Collar CE consists of a corrosion-resistant, powder-coated steel sleeve that contains a flexible, graphite-based intumescent liner designed to fit standard diameter plastic pipes. In the event of a fire, the intumescent material inside the collar expands, compressing the pipe and sealing the gap left by the pipework, thereby preventing the spread of fire.
FirePro Pipe Collar CE is available in depths of 30mm or 40mm allowing it to be installed around a service where space is restricted. FirePro Pipe Collar CE can be installed on flexible and rigid walls and rigid floor constructions.
*Subject to application
- Up to 240 minutes of fire resistance (rigid floors)*
- Up to 120 minutes of fire resistance (flexible/rigid walls)*
- Tested with ROCKWOOL® FirePro Ablative Coated Batt seals
- Seals standard plastic pipe penetrations 32mm – 250mm diameter
- Certified by UL-EU-01205-CPR
- CE marked in accordance with EAD 350454-00-1104
Areas of application
FirePro Pipe Collar CE is suitable for use on the following construction types:
- Pipe penetrations (32mm – 250mm diameter) in flexible wall and wall and rigid floor constructions
Documentation

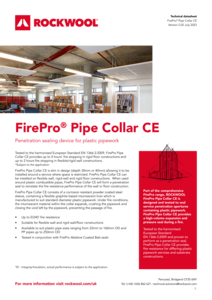

FirePro Pipe Collar CE Datasheet
FirePro® Pipe Collar CE seals service penetration apertures containing plastic pipework by providing a high-volume expansion and pressure seal during a fire.
Firepro Pipe Collar CE UL-EU Certificate
Certificate No. UL-EU-01205-CPR
FirePro Pipe Collar Installation Guide
Installation guideline for ROCKWOOL FirePro Pipe Collar
Republic of Ireland Price List
Price List March 2025
UK Price List
Price List March 2025
