FirePro® Pipe Collar

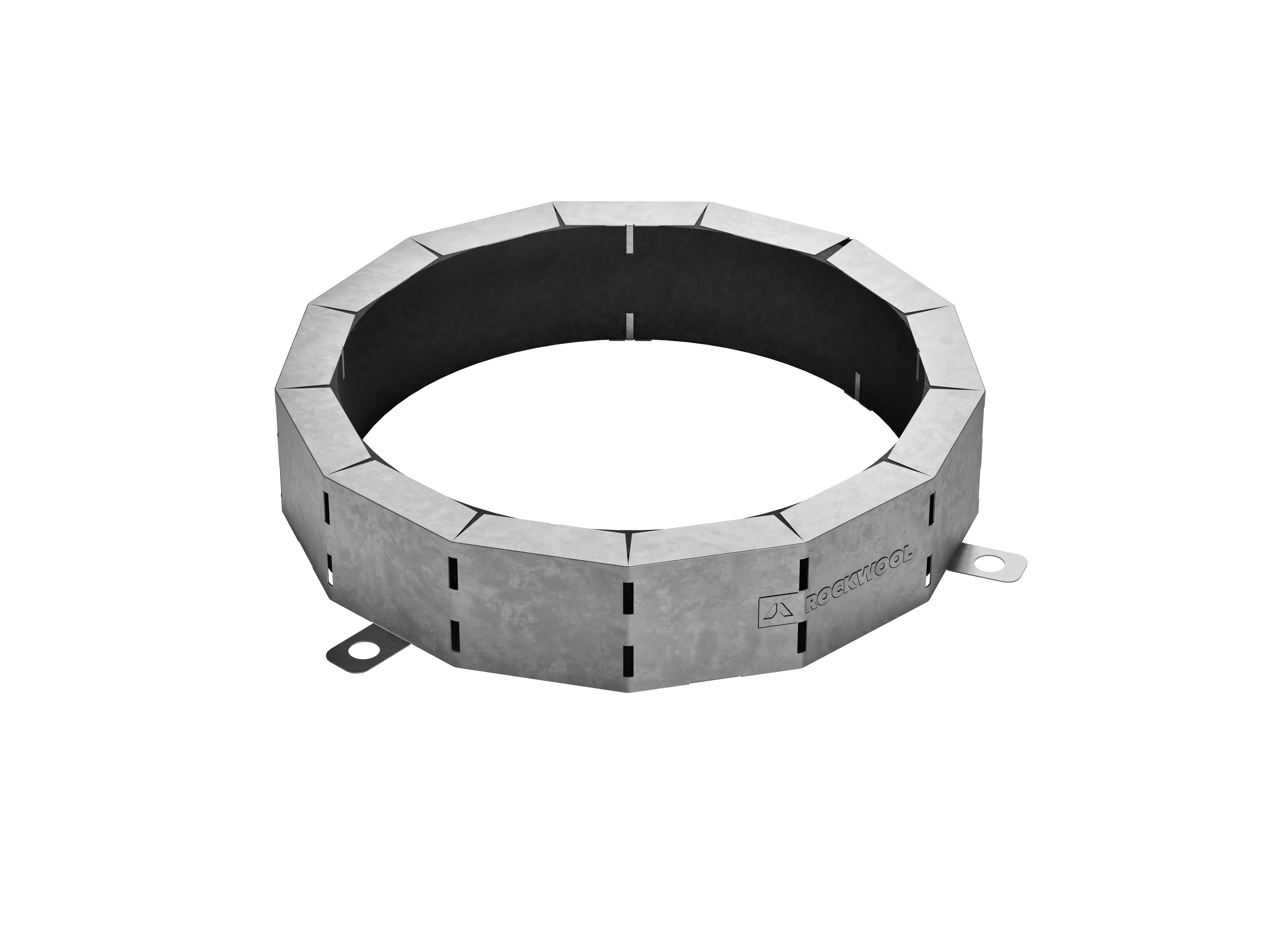

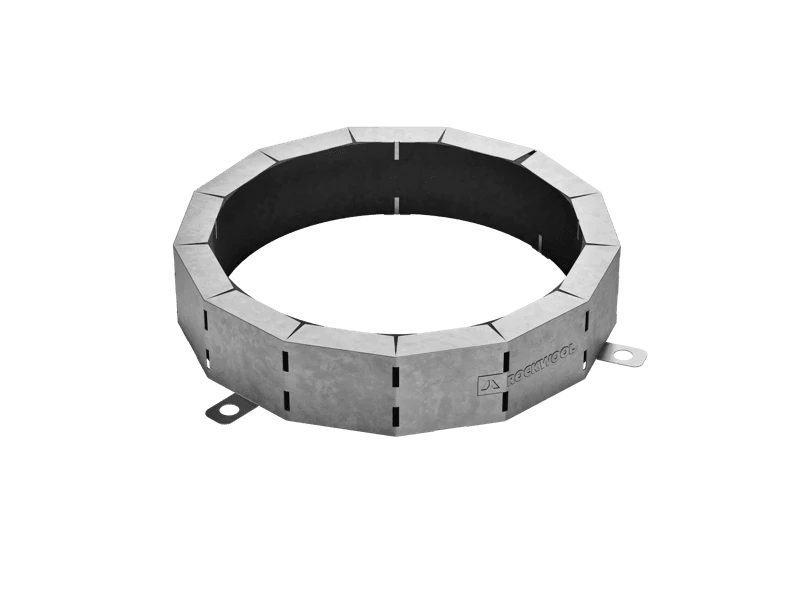

FirePro® Pipe Collar has a galvanised steel shell containing a fire-resistant intumescent wrap, designed, tested, and certified to seal service penetration apertures containing plastic pipework. In the event of a fire, FirePro Pipe Collar activates to prevent the spread of fire between building compartments.

20250612_RW-UK_PROD_02

1/1

  • UL-EU-01359-EN

Application(s)

  • Fire-stopping
  • Penetration Seals

Product description

FirePro® Pipe Collar includes a graphite-based intumescent wrap that provides a high-volume and pressure expansion seal around pipe services when exposed to fire. FirePro Pipe Collar is 40mm wide and is suitable for use around pipes with an outer diameter of up to 160mm.

FirePro Pipe Collar provides fire resistance of up to 240 minutes in floor constructions and up to 120 minutes in wall constructions in accordance with BS EN 1366-3: 2021+A1: 2024, subject to the application. It is currently available in three sizes to suit combustible pipes with an outside diameter between 32mm and 160mm. FirePro Pipe Collar has replaced FirePro Pipe Collar CE as the new EN-tested solution.

  • Tested in accordance with BS EN 1366-3: 2021+A1: 2024
  • Classified in accordance with BS EN 13501-2: 2023
  • UL-EU Mark
  • Tested in accordance with ASTM E2923-14 (longevity assessment of fire-stop materials)
  • Tested within FirePro CB50 fire-stopping batt system

Areas of application

Applications for FirePro® Pipe Collar are plastic pipe penetrations with an outside diameter from 40mm to 160mm, in:

  • Flexible and rigid wall constructions
  • Rigid floor constructions
  • Combustible pipes
  • Composite pipes

Documentation

Please select and download the documentation pertaining to this product

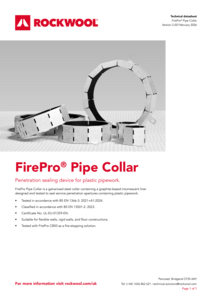

FirePro Pipe Collar Datasheet

FirePro Pipe Collar Datasheet

FirePro Pipe Collar is a galvanised steel collar containing a graphite based intumescent liner designed and tested to seal service penetration apertures containing plastic pipework.

FirePro Pipe Collar - 4791365504.1 - Classification Report

FirePro Pipe Collar - 4791365504.1 - Classification Report

FirePro Pipe Collar - 4791365504.1 - Classification Report - This classification report defines the classification assigned to the product FirePro® Pipe Collar, in accordance with the procedures given in EN 13501-2: 2023.

FirePro Pipe Collar Installation Guidelines

FirePro Pipe Collar Installation Guidelines

Installation guide for FirePro Pipe Collar

FirePro Pipe Collar MSDS 2025

FirePro Pipe Collar MSDS 2025

Material safety datasheet: FirePro Pipe Collar

Republic of Ireland Price List

Republic of Ireland Price List

Price List March 2025

Certificates

  • UL-EU-01359-EN
