BeamClad®
BeamClad® is a non-combustible stone wool insulation slab for the protection of structural steel from fire.
1/2
Application(s)
- Fire Protection
- Structural Fire Protection
Product description

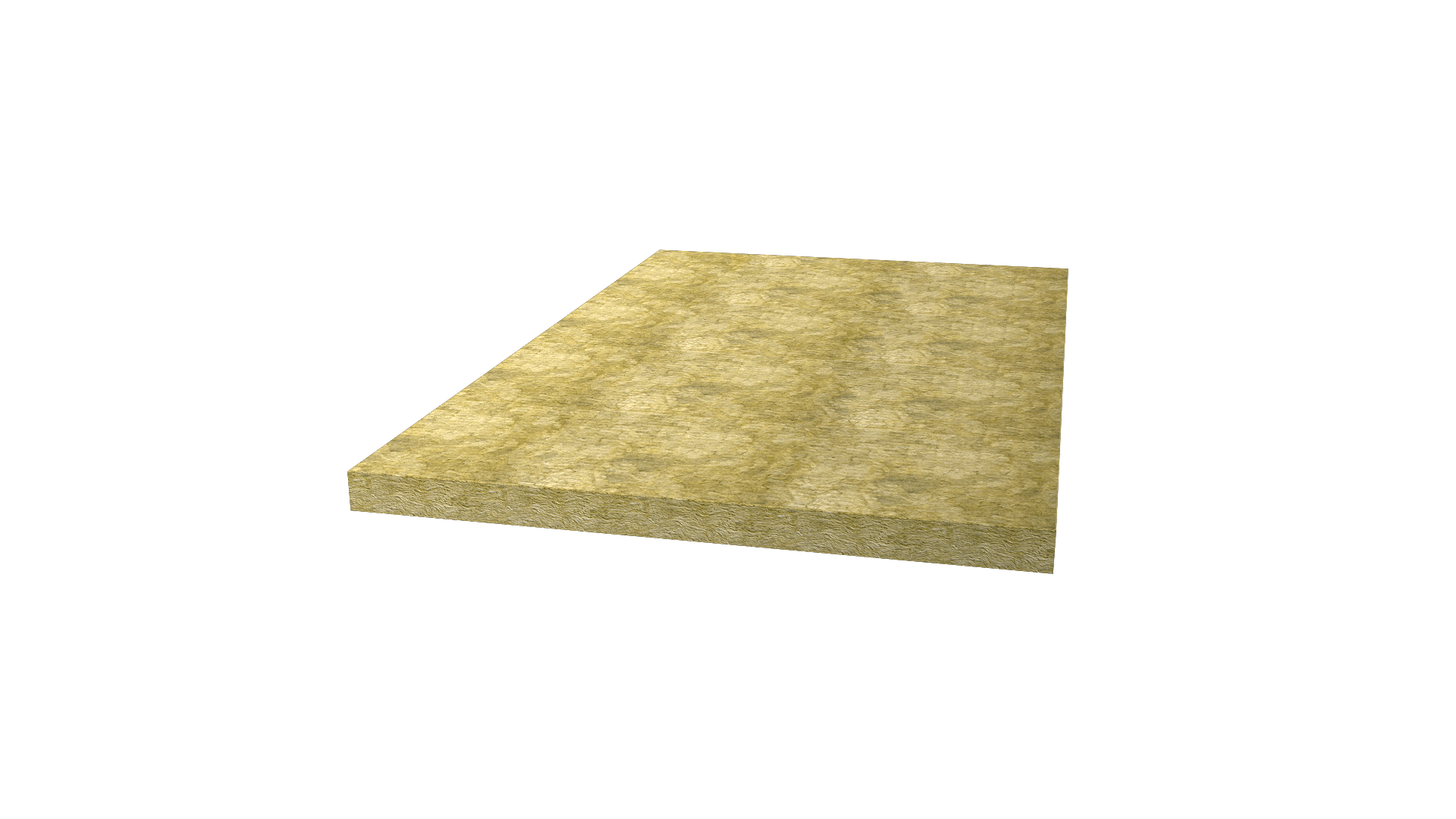

ROCKWOOL BeamClad is a non-combustible stone wool insulation slab. The product provides up to 4 hours’ fire resistance to structural steelwork*, assessed at critical temperatures between 350°C and 800°C, including the default temperatures of 550°C (columns) and 620°C (beams).
It has also been tested to provide fire protection to timber floor systems and concrete soffits.
Slabs are sized 2000x1200mm and are available with an optional tissue or aluminium foil facing. BeamClad slabs can be fixed to the steel using stud-welded pins, or adhered using FirePro Glue and noggings. All joints must be treated with FirePro Glue.
* Subject to application
- Euroclass A1 in accordance with BS EN 13501-1 Reaction to Fire rating
- Tested in accordance with EN 13381-4:2002 & EN 13881-4:2013
Areas of application
Applications for BeamClad are:
- Steel I- and H-sections
- Timber floor systems
- Concrete soffits
Documentation
Please select and download the documentation pertaining to this product

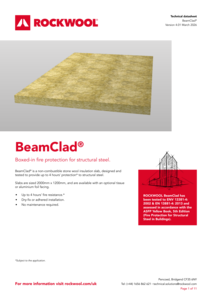

FirePro BeamClad Datasheet
BeamClad® is a non-combustible stone wool insulation slab for the protection of structural steel from fire.

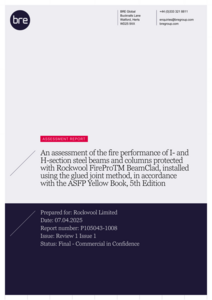

BeamClad BRE Global Assessment Report - glued method
An assessment of the fire performance of I- and H- sections of steel beams and columns protected with ROCKWOOL BeamClad installed using the glued joint method.
Beamclad BRE Global Assessment Report - stud welded pin method
An assessment of the fire performance of I- and H- sections of steel beams and columns protected with ROCKWOOL BeamClad installed using the stud welded pin method.
SUIS ROCKWOOL UK
Safe use instruction sheet ROCKWOOL stone wool insulation products
Republic of Ireland Price List
Price List March 2025
