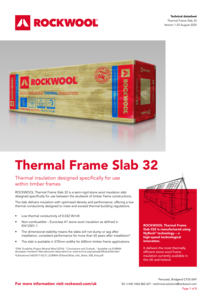

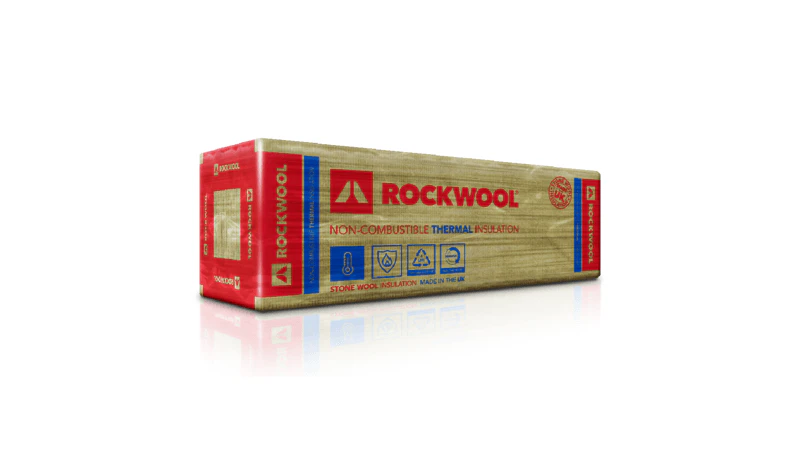

ROCKWOOL Frame Slab 32
ROCKWOOL Frame Slab 32 has been engineered as a semi-rigid insulation slab to provide a friction fit between the studwork of timber frame walls. Saving on installation time and reducing waste, the friction fit helps to support performance by avoiding thermal bridging and gaps in the structure. Even as the timber studs continue to dry out and contract over the time, the Thermal Frame Slab 32 will stay firmly in place.
Manufactured from stone wool, ROCKWOOL Thermal Frame Slab 32 is rated Euroclass A1 non-combustible and is able to withstand temperatures in excess of 1,000°C. The density and non-directional fibre orientation of stone wool means it also supports acoustic requirements.
ROCKWOOL Thermal Frame Slab 32 is manufactured using NyRock technology a patented high-speed technological innovation which delivers the most thermally efficient stone wool insulation currently available in the UK and Ireland.
Specification
| NBS Clauses | Length (mm) | Width (mm) | *Approved thickness range (mm) |
| 1200 | 570 | 140 |
*Thickness options may be subject to a minimum production volume. Speak to the specification team for guidance.
Standards and Certification
| Product Standards | BS EN 13162 |
| CE Marking / UKCA | Yes |
Technical Properties
| Reaction to Fire | Euroclass A1 (BS EN 13501-1) |
| Thermal Conductivity | 0.032 W/mK |
| Water Repellent | Yes |
Thermal Performance

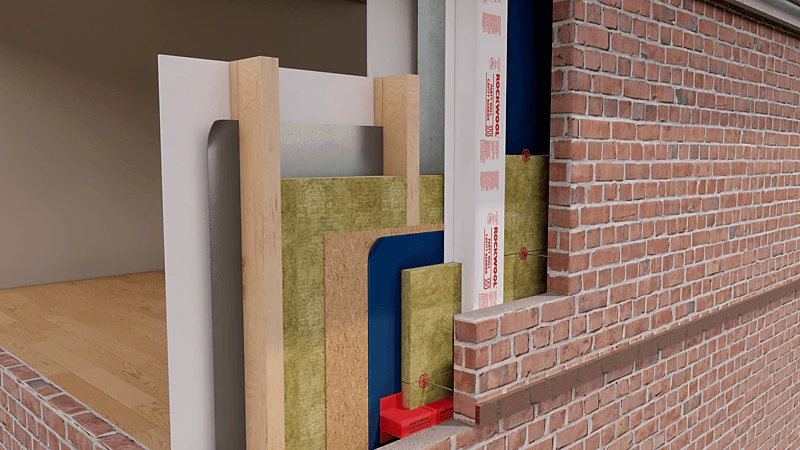

Timber frame external wall with brick finish / Insulation between the studs, with service void
| Thermal Frame Slab 32 (mm) | Stud Depth | U-value (W/mK) | Vapour Control Layer | Breather Membrane | ||
| Standard | Standard | Tyvek Reflex | Protect TF200 Thermo | |||
| 140 | 140 | 0.25 | √ | √ | ||
| 140 | 140 | 0.21 | √ | √ | ||
| 140 | 140 | 0.20 | √ | √ | ||
