HVAC Thermal Products HVAC

Ductwrap

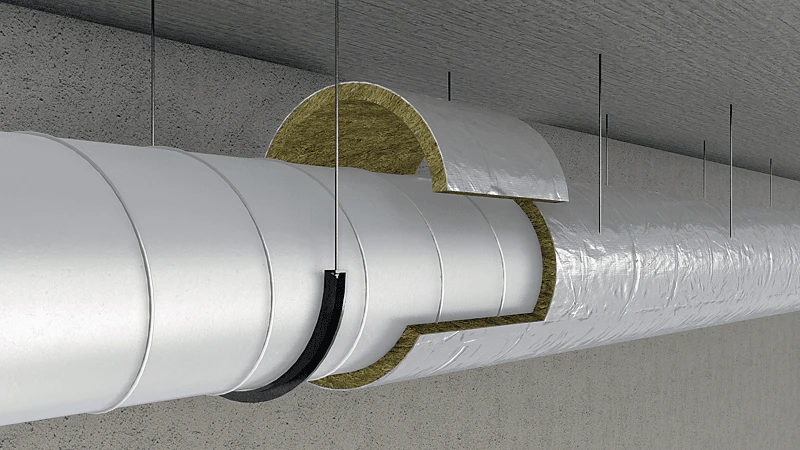

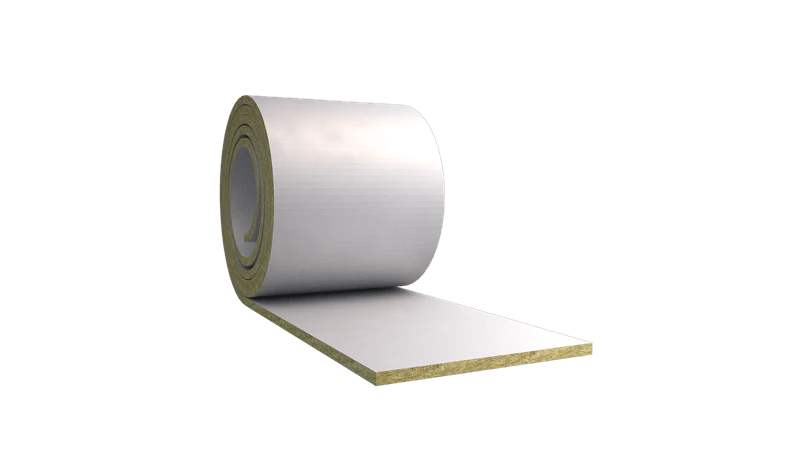

Ductwrap is a foil faced mat designed for ease of installation to circular ducts.

In order to regulate temperature within heating, ventilation and air conditioning systems insulation must be applied. ROCKWOOL Ductwrap can provide the thermal insulation to these HVAC systems as well as  cold water storage, feed and expansion tanks. This solution is acoustically absorbent and A1 non-combustible to deliver the highest level of fire performance.

Back
Back

Product Properties

Compliance BS EN 14304, ISO 14001
Density 45Kg/m3
Reaction to fire Euroclass A1
Thermal conductivity 0.034 W/mK
Water vapour resistance 1000MNs/g
Back
Back
Back
Back
Back

Product range and ancillaries

Item number External item number Product Country Thickness (mm) Width (mm) Length (mm) Pieces Per Pack Packs Per Pallet m² Per Pack m² Per Pallet
122931 122931 Ductwrap UK 25 1000 5000 2 21 10 210
122932 122932 Ductwrap UK 40 1000 4000 2 21 8 168
122933 122933 Ductwrap UK 50 1000 6000 1 21 6 126
