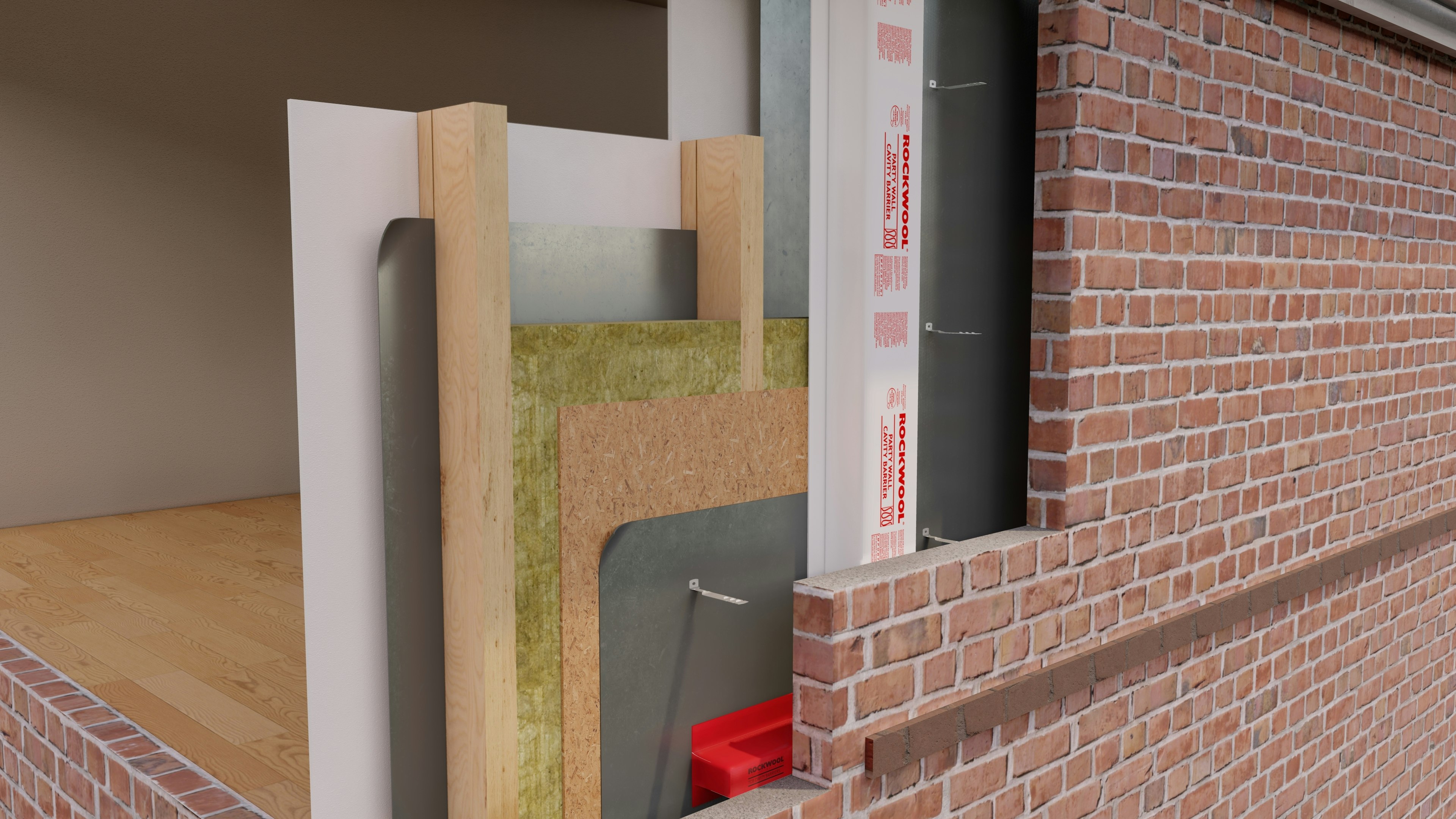

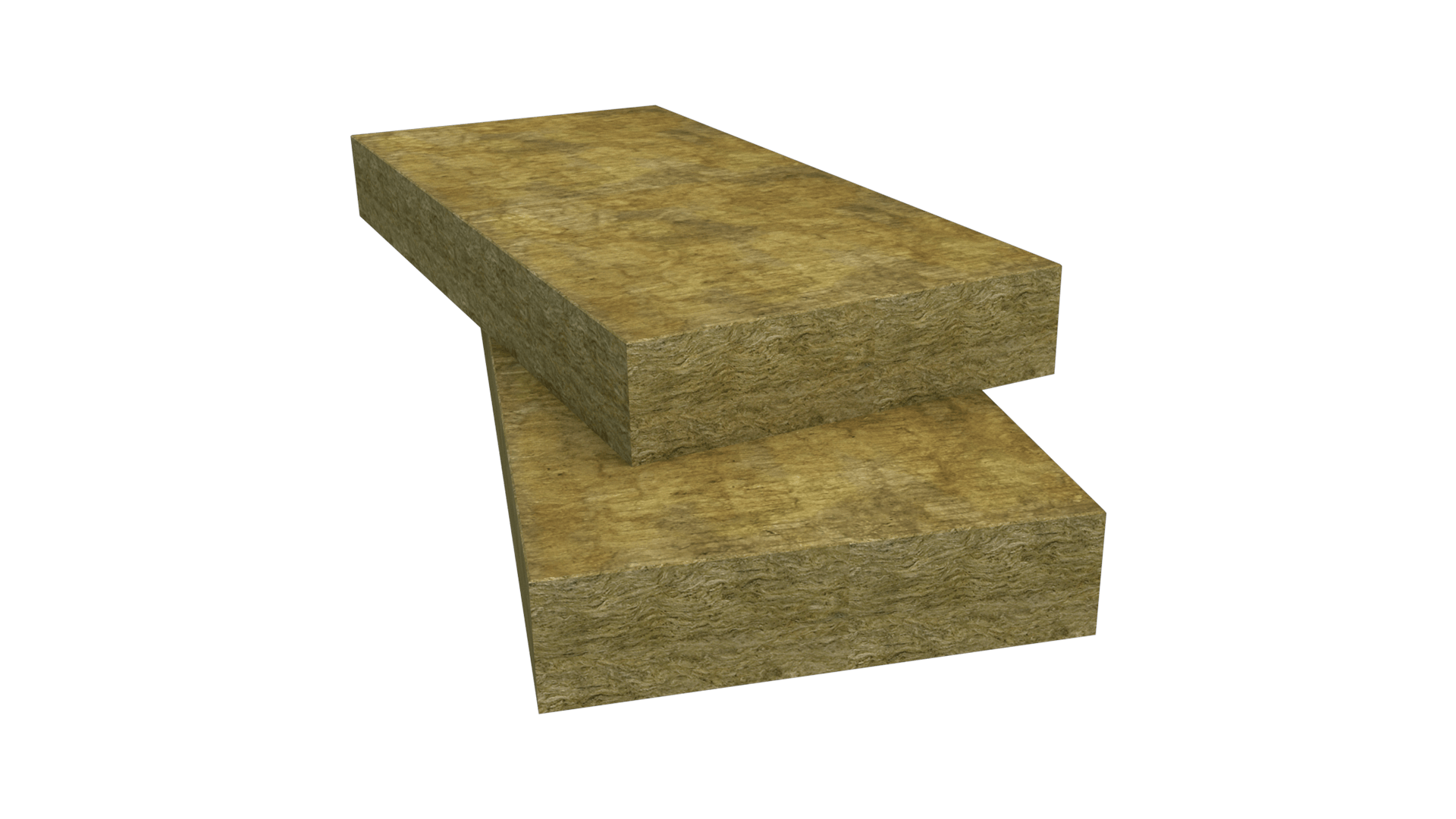

NyRock Frame Slab 032 is a semi-rigid stone wool insulation slab designed specifically for use between the studwork of external timber or light gauge steel frame walls.
NyRock Frame Slab 032 is manufactured using NyRock technology, a patented high speed technological innovation which delivers a thermal conductivity of 0.032 W/mK, the lowest lambda stone wool insulation currently available in the UK.
Designed specifically for quick and easy installation into the standard size 600mm studs, of external timber or steel frame walls. This means the insulation takes less time to install, is more reliable and provides a long-lasting fit.
The dimensional stability means the slabs will not sag or slump after installation, with no gaps in the insulation layer, delivering the same performance for the life of the building.
Specification
| NBS Clauses | Length (mm) | Width (mm) | *Approved thickness range (mm) |
|
P10-140 K10 -145 K10-155 K10-165 | 1200 | 570 | 50 - 200 |
|
P10-140 K10 -145 K10-155 K10-165 | 1200 | 600 | 50 - 200 |
*Thickness options may be subject to a minimum production volume. Speak to the specification team for guidance.
Standards and Certification
|
Product standards | BS EN 13162 |
| CE Marking / UKCA | Yes |
Technical Properties
|
Reaction to fire (Euroclass) | Euroclass A1 |
|
Thermal conductivity | 0.032 W/mK |
Thermal Performance

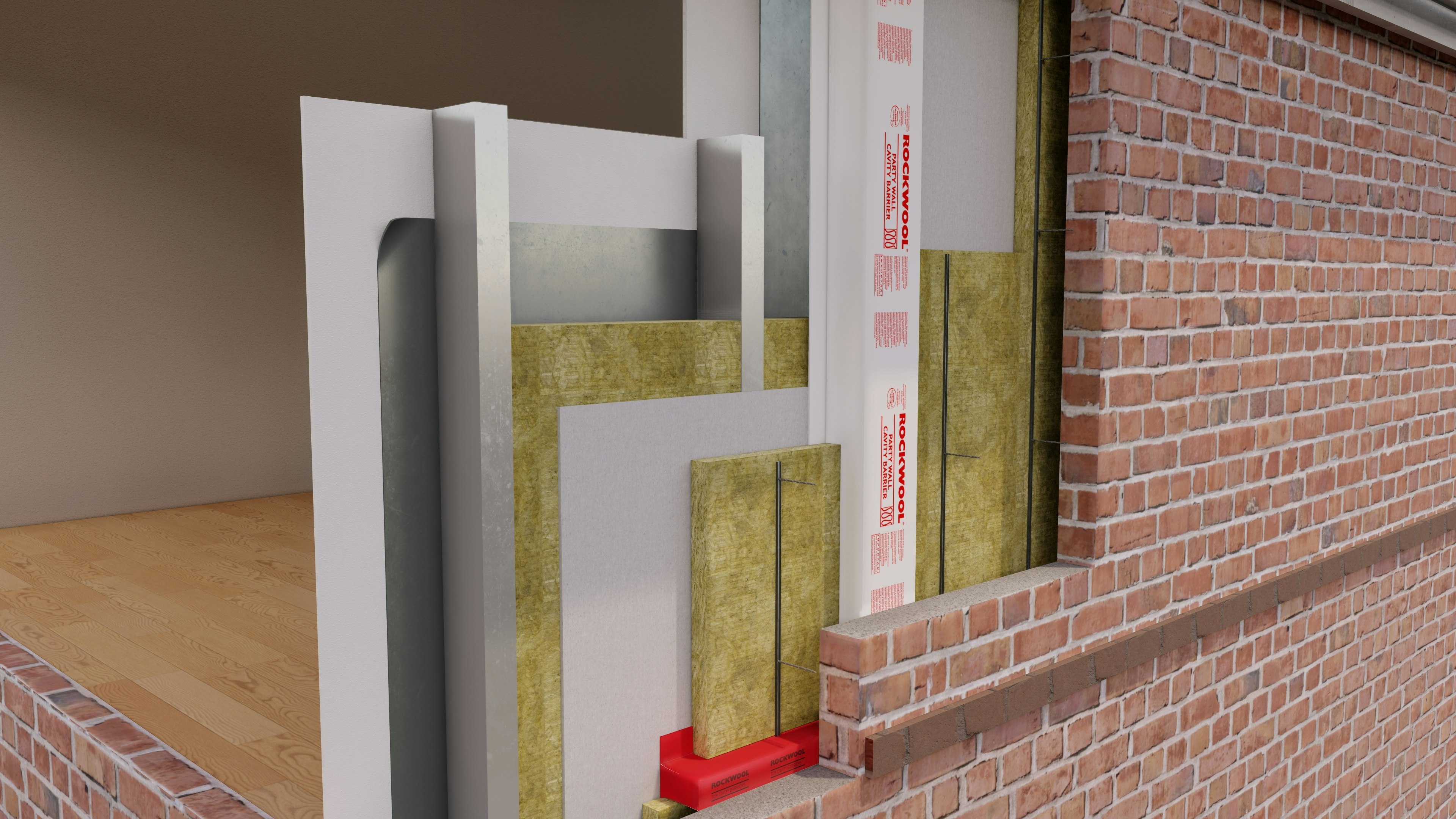

Steel Frame System with Brick Outer
| U-values (W/m2K) |
NyRock Frame Slab 032 | Stud depth | NyRock Rainscreen 032 |
| 0.25 | 100 | 100 | 50 |
| 0.24 | 120 | 120 | 50 |
| 0.22 | 150 | 150 | 50 |
| 0.17 | 100 | 100 | 100 |
| 0.17 | 120 | 120 | 100 |
| 0.16 | 150 | 150 | 100 |
