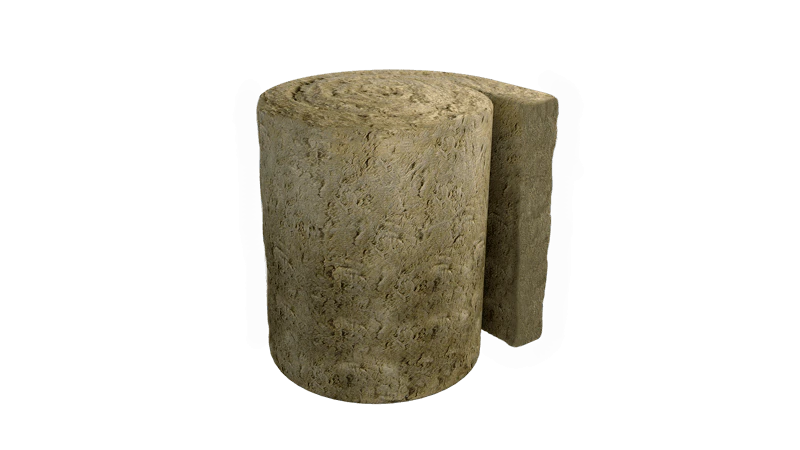

ROCKWOOL Cladding Roll is a lightweight, cost-effective and non-combustible insulation product, ideal for use in industrial and commercial framed buildings.
Once installed, adjacent tightly-butted rolls will effectively 'knit' together to provide a continuous insulating layer, reducing heat losses that would otherwise be caused by gaps.
As demonstrated by independent in-situ laboratory testing, Cladding Roll works to significantly reduce the transfer of airborne noise through the building envelope.
The product also offers essential fire protection and has been shown to achieve 4 hours integrity, 4 hours stability and 17 minutes insulation when tested within a typical twin-skin wall system.
|NBS Clause||Length (mm)||Width (mm)||*Approved thickness range (mm)|
H30-311, H31-254, H31-271, P10-220
|2000 - 5000||1200||60 - 220|
*Thickness options may be subject to a minimum production volume. Speak to the specification team for guidance.
Standards and Certification
|Product standards||BS EN 13162, ISO 14001, BS EN 13501-1|
|CE Marking||CE Marked|
|LPCB||LPCB (Certificate 022e)|
|Reaction to fire (Euroclass)||Euroclass A1|
|Fire resistance||Up to 240 minutes (integrity)|
|Thermal conductivity||0.040 W/mK|
|Water vapour resistance||5.9 MNs/gm|
|U-value (W/m2K)||Thickness (mm)|
- A 0.4mm thick lining sheet and 0.55mm outer sheet filled with 100mm Cladding Roll achieved Rw 37dB.
- This can be increased to Rw 38dB by including an air space between the insulation and the outer sheets.
Download CAD Drawings here
