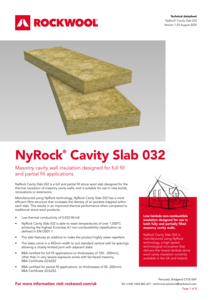

NyRock Cavity Slab 032 is a full and partial fill stone wool slab designed for the thermal insulation of masonry cavity walls.
Suitable for use in new builds, renovations or extensions, the lightweight slabs are easy to handle and simple to install proving an accurate fit against the blockwork.
Manufactured using patented technology, NyRock Cavity Slab 032 has a more efficient fibre structure that increases the density of air pockets trapped within each slab. This results in an improved thermal performance when compared to typical stone wool products.
- Low thermal conductivity of 0.032 W/mK.
- NyRock Cavity Slab 032 is able to resist temperatures of over 1,000ºC achieving the highest Euroclass A1 non-combustibility classification as defined in EN13501-1.
- The slabs come in a 455mm width to suit standard vertical wall tie spacings allowing a closely knitted joint with adjacent slabs.
Specification
| NBS Clauses | Length (mm) | Width (mm) | *Approved thickness range (mm) |
|
F30 F10 F150 F155 | 1200 | 455 | 50-200 |
*Thickness options may be subject to a minimum production volume. Speak to the specification team for guidance.
Standards and Certification
| Product Standards | BS EN 13162 |
| CE Marking / UKCA | Yes |

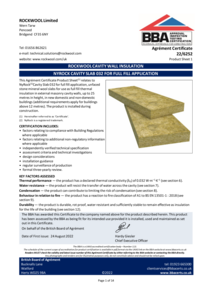

| BBA Approved | Certificate 22/6252 |
Technical Properties
| Reaction to fire | Euroclass A1 (BS EN 13501-1) |
| Thermal conductivity | 0.032 W/mK |
| Water repellent | Yes |
Thermal Performance
Full Fill Application
102mm facing brick outer skin, NyRock Cavity Slab 032 Full Fill, 100mm internal concrete block (various densities) Internal finishes: plasterboard on dab.
| Inner Block |
Dense 1900-2250kg/m³ (1.130 W/mK) |
Medium Dense 1400-1450kg/m³ (0.470 W/mK) |
Aircrete Hi Strength 750kg/m³ (0.190 W/mK) |
Aircrete Std 600kg/m³ (0.150 W/mK) |
| Full Fill Cavity (mm) | U-value (W/m²K) | |||
| 100 | 0.27 | 0.26 | 0.25 | 0.24 |
| 125 | 0.22 | 0.22 | 0.21 | 0.20 |
| 150 | 0.19 | 0.19 | 0.18 | 0.18 |
| 200 | 0.15 | 0.14 | 0.14 | 0.14 |
Partial Fill Application
102mm facing brick outer skin, 50mm clear cavity space, NyRock Cavity Slab 032 Partial Fill, 100mm internal concrete block (various densities) Internal finishes: plasterboard on dab
| Inner Block |
Dense 1900-2250kg/m³ (1.130 W/mK) |
Medium Dense 1400-1450kg/m³ (0.470 W/mK) |
Aircrete Hi Strength 750kg/m³ (0.190 W/mK) |
Aircrete Std 600kg/m³ (0.150 W/mK) |
| Partial Fill Cavity (mm) | U-value (W/m²K) | |||
| 100 | 0.26 | 0.25 | 0.24 | 0.23 |
| 125 | 0.21 | 0.21 | 0.20 | 0.20 |
| 150 | 0.18 | 0.18 | 0.17 | 0.17 |
| 200 | 0.14 | 0.14 | 0.14 | 0.13 |
