Conlit® Pipe Collar

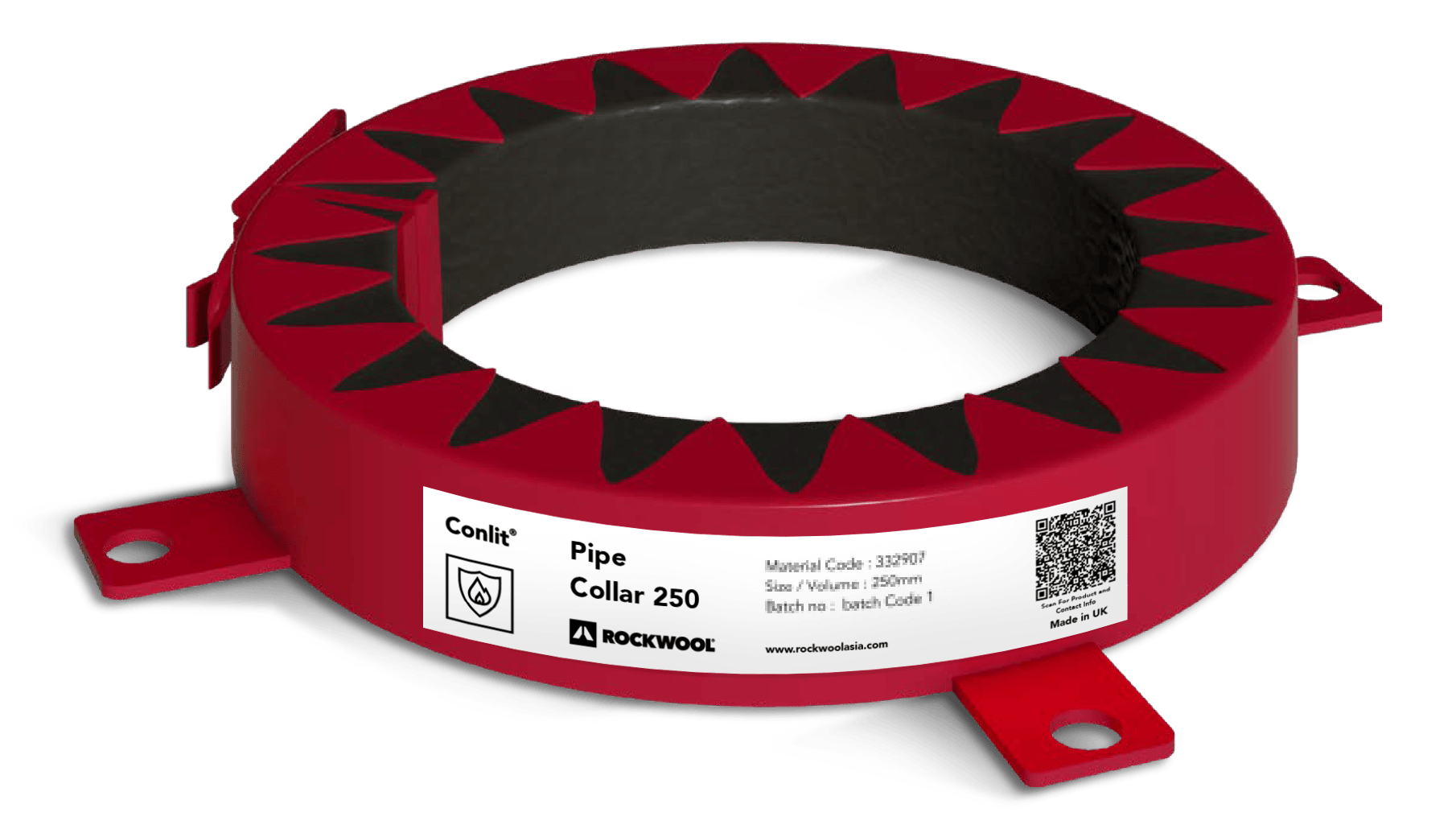

Conlit Pipe Collar is a penetration sealing device for plastic pipework.

Download Conlit Pipe Collar Data Sheet
Penetration sealing device for plastic pipework Conlit Pipe Collar provides up to 4 hours* fire stopping in rigid floor constructions and up to 2 hours fi re stopping in fl exible/rigid wall constructions. *Subject to the application Conlit Pipe Collar is slim in design (depth 30mm or 40mm) allowing it to be installed around a service where space is restricted. Conlit Pipe Collar can be installed on flexible wall, rigid wall and rigid floor constructions. When used around plastic combustible pipes, Conlit Pipe Collar will form a penetration seal to reinstate the fire resistance performance of the wall or floor construction. Conlit Pipe Collar consists of a corrosion resistant powder coated steel sleeve, containing a flexible graphite based intumescent liner which is manufactured to suit standard diameter plastic pipework. Under fire conditions, the intumescent material within the collar expands, crushing the pipework and closing the void left by the pipework, preventing the passage of fire.

1/1

Application

  • Passive Fire Protection
  • Fire Stopping

Product Description

Conlit Pipe Collar is designed and tested to seal service penetration apertures containing plastic pipework. Conlit Pipe Collar provides a high-volume expansion and pressure seal during a fire. Tested to the harmonised European Standard EN 1366-3 and proven to perform as a penetration seal, Conlit Pipe Collar provides fire resistance for differing plastic pipework services and substrate constructions.

  • Optimized Packaging
  • Quick Installation

Product Benefits

  • Designed and tested to seal service penetration apertures containing plastic pipework
  • Provides a high-volume expansion and pressure seal during a fire.
  • Provides fire resistance for differing plastic pipework services and substrate constructions.
  • Suitable for flexible wall and rigid wall/floor constructions
  • Available to suit plastic pipe sizes ranging from 110mm to 160mm OD and PP pipes up to 250mm OD
  • Under fire conditions, the intumescent material within the collar expands, crushing the pipework and closing the void left by the pipework, preventing the passage of fire.
