Conlit® Intumescent Pipewrap

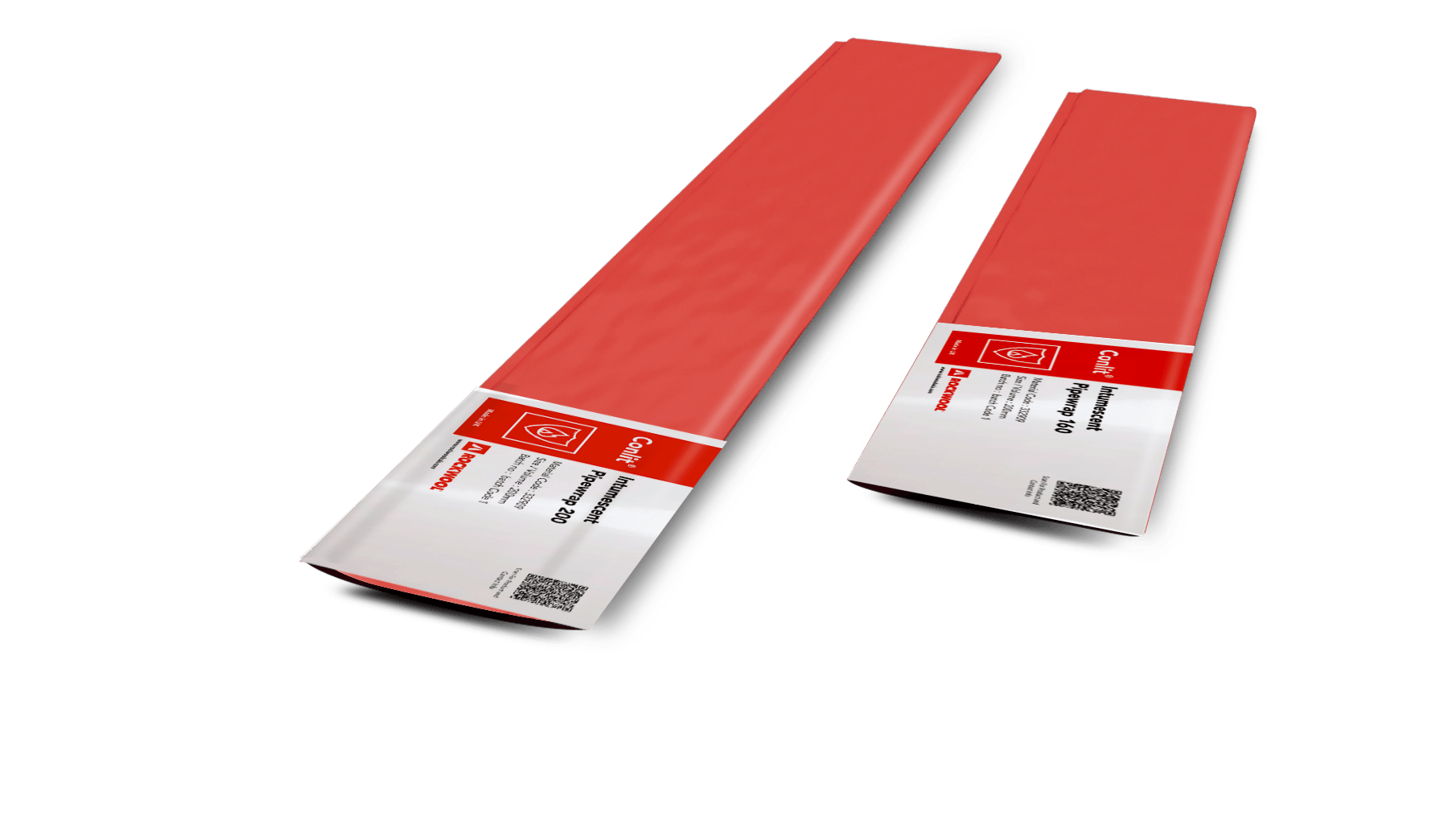

Conlit Intumescent Pipe Wraps are designed to seal service penetrations in apertures containing combustible plastic pipes.

Download Conlit Intumescent Pipe Wrap Data Sheet
Fire stop solution for plastic pipe penetrations. Conlit Intumescent Pipe Wrap are designed to seal service penetrations in apertures containing combustible plastic pipes. Pipe Wraps comprise layers of a graphite based intumescent sheet encapsulated in a polythene sheath. All Pipe Wraps are supplied in correct lengths to suit the pipe diameter. Conlit Intumescent Pipe Wrap are tested to plastic services penetrating flexible andrigid wall constructions, rigid floors and in Conlit Ablative Liquid coated slab. Conlit Intumescent Pipe Wrap are tested with end capping configurations that cover U/C pipes.

1/1

Application

  • Passive Fire Protection
  • Fire Stopping

Product Description

Conlit Intumescent Pipe Wraps comprise layers of a graphite based intumescent sheet encapsulated in a polythene sheath. All Conlit Intumescent Pipe Wraps are supplied in correct lengths to suit the pipe diameter. Conlit Intumescent Pipe Wraps are tested to BS EN 1366-3 to provide assurance where specified. They offer a a simple and more economical alternative to Conlit Pipe Collar, for fire stopping plastic pipework penetrations through fire rated walls and floors.

  • Optimized Packaging
  • Quick Installation

Product Benefits

  • Designed to seal service penetrations in apertures containing combustible plastic pipes.
  • Tested to plastic services penetrating flexible and rigid wall constructions, rigid floors and in Conlit Ablative Liquid coated slab.
  • Simple to install with no mechanical fixings required
  • Available to suit pipe diameters up to 250mm O.D.
  • Dry system
  • Water resistant

Downloads

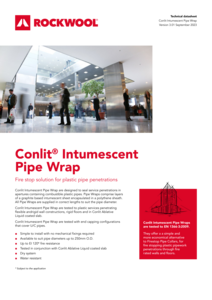

Conlit® Intumescent Pipe Wrap
