Flat Roof Products

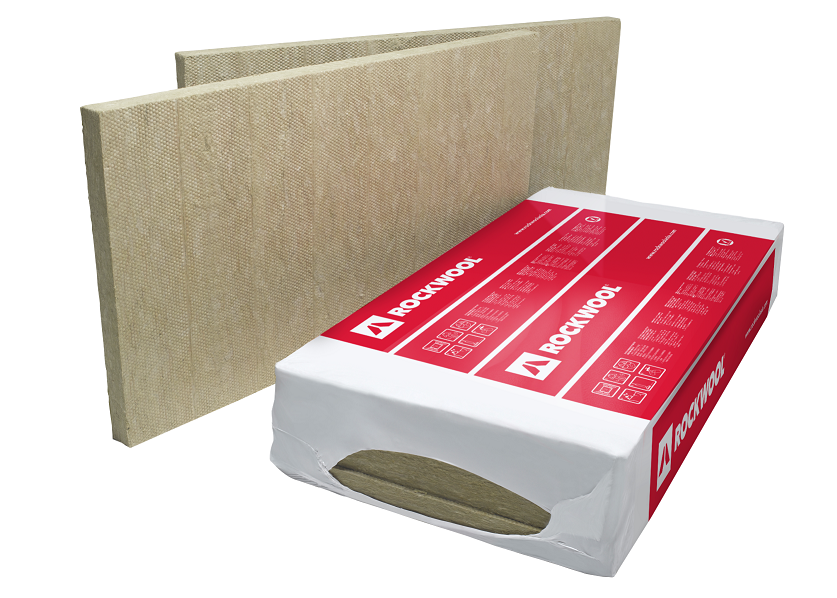

Hardrock & Roofrock

To provide flexibility in design, cost and usage of membrane roofing system, ROCKWOOL roofing boards offer three different types of roofing insulation system to allow owners, designers and installers to achieve the desired performance of an ideal roof.

Back
Back

Specification & Sizes

Compare
Dimensions
Product ID Product Name Thickness (mm) Width (mm) Length (mm) Piece/Pack
189408 Roofrock 85 2400 1200 12 / PAL
189409 Roofrock 100 2400 1200 10 / PAL
159063 Hardrock 60 50 600 1200 4
216806 Hardrock 60 50 600 1200 40 / PAL
159132 Hardrock 80 50 600 1200 4
170898 Hardrock 80 50 1200 1200 2
166903 Hardrock 80 50 1200 2400 20 / PAL
159185 Hardrock 80 75 1200 2400 14 / PAL
159092 Hardrock 80 100 600 1200 2
207078 Hardrock 80 100 600 1200 20 / PAL
Reaction to fire EN13501-1

Hardrock 60

EN13501-1 Non-combustible /A1 Fire Classification

Hardrock 80

EN13501-1 Non-combustible /A1 Fire Classification
Thermal conductivity ASTM C518

Hardrock 60

20°C λ Value (W/mK) 0.037

Hardrock 80

20°C λ Value (W/mK) 0.038
Water absorption EN1609.97

Hardrock 60

Partial immersion Less than 0.5kg/m²

Hardrock 80

Partial immersion Less than 0.5kg/m²
Compressive stress at 10 % deformation EN 826

Hardrock 60

EN 826 >60kPa



Hardrock 80

EN 826 >80kPa
Point load resistance at 5mm deformation EN 12430

Hardrock 60

EN 12430 >500N



Hardrock 80

EN 12430 >700N

Back
Product ID Product Name Thickness (mm) Width (mm) Length (mm) Piece/Pack
189408 Roofrock 85 2400 1200 12 / PAL
189409 Roofrock 100 2400 1200 10 / PAL
159063 Hardrock 60 50 600 1200 4
216806 Hardrock 60 50 600 1200 40 / PAL
159132 Hardrock 80 50 600 1200 4
170898 Hardrock 80 50 1200 1200 2
166903 Hardrock 80 50 1200 2400 20 / PAL
159185 Hardrock 80 75 1200 2400 14 / PAL
159092 Hardrock 80 100 600 1200 2
207078 Hardrock 80 100 600 1200 20 / PAL
Back

Hardrock 60

EN13501-1 Non-combustible /A1 Fire Classification

Hardrock 80

EN13501-1 Non-combustible /A1 Fire Classification
Back

Hardrock 60

20°C λ Value (W/mK) 0.037

Hardrock 80

20°C λ Value (W/mK) 0.038
Back

Hardrock 60

Partial immersion Less than 0.5kg/m²

Hardrock 80

Partial immersion Less than 0.5kg/m²
Back

Hardrock 60

EN 826 >60kPa



Hardrock 80

EN 826 >80kPa
Back

Hardrock 60

EN 12430 >500N



Hardrock 80

EN 12430 >700N

Product

Item number Product Thickness (mm) Width (mm) Length (mm) Packs Per Pallet
189408 Roofrock 85 2400 1200 12
189409 Roofrock 100 2400 1200 10
159063 Hardrock 60 50 600 1200 4
216806 Hardrock 60 50 600 1200 40
159132 Hardrock 80 50 600 1200 4
170898 Hardrock 80 50 1200 1200 2
166903 Hardrock 80 50 1200 2400 20
159185 Hardrock 80 75 1200 2400 14
159092 Hardrock 80 100 600 1200 2
207078 Hardrock 80 100 600 1200 20

We can't find any results that match your search

Load more
Back

Tools, Guides & Downloads

documents





pdf
icon
Flat Roof Insulation (Hardrock)
Flat Roof Insulation (Hardrock)
