ProRox® WM 968XC
ProRox WM 968 XC is a lightly bonded heavy duty stone wool insulation mat stitched on galvanised wire mesh with galvanised wire while preserving its excellent thermal performance in use.
1/1
Application
- Industrial Insulation
Product Description
ProRox WM 968 XC is a lightly bonded heavy duty stone wool mat stitched on galvanised wired mesh with galvanised wire. The wired mat is especially suitable for industrial applications such as high-pressure steam pipes, reactors, furnaces, etc. where high demands are made on the temperature resistance of the insulation. Stainless steel mesh, stainless steel binding wire and/or aluminium foil facing are available upon request.
- Resists water absorption to deliver long-term durability
- Non-combustible and fire resistant
- Easily conforms to irregular surfaces
- Uniform appearance – easy to handle and cut-to-size on site
Product Benefits
- Suitable for heavy duty applications which are exposed to high temperatures and high mechanical loads
- Resistant to high temperatures
- Flexible application
- Available in a wide range of thicknesses
- Suitable for use over stainless steel
Application
The wired mat is suitable for the thermal and acoustic insulation of industrial installations subjected to vibrations and exposed to the environment, such as outdoor industrial pipework, reactors and furnaces.
Thermal Conductivity
| Name | Unit | Value |
|---|---|---|
| Thermal conductivity (50 °C) | W/m∙K | 0.039 |
| Thermal conductivity (100 °C) | W/m∙K | 0.045 |
| Thermal conductivity (150 °C) | W/m∙K | 0.051 |
| Thermal conductivity (200 °C) | W/m∙K | 0.060 |
| Thermal conductivity (250 °C) | W/m∙K | 0.069 |
| Thermal conductivity (300 °C) | W/m∙K | 0.080 |
Technical Properties
| Name | Unit | Value |
|---|---|---|
| Reaction to fire | Euroclass | A1 |
| Water absorption | kg/m² | ≤ 1,0 kg/m² |
| Vapor sorption by weight | % | 1 |
Product Variant
Downloads
ProRox WM 968 XC
Related Product
Industrial Insulation

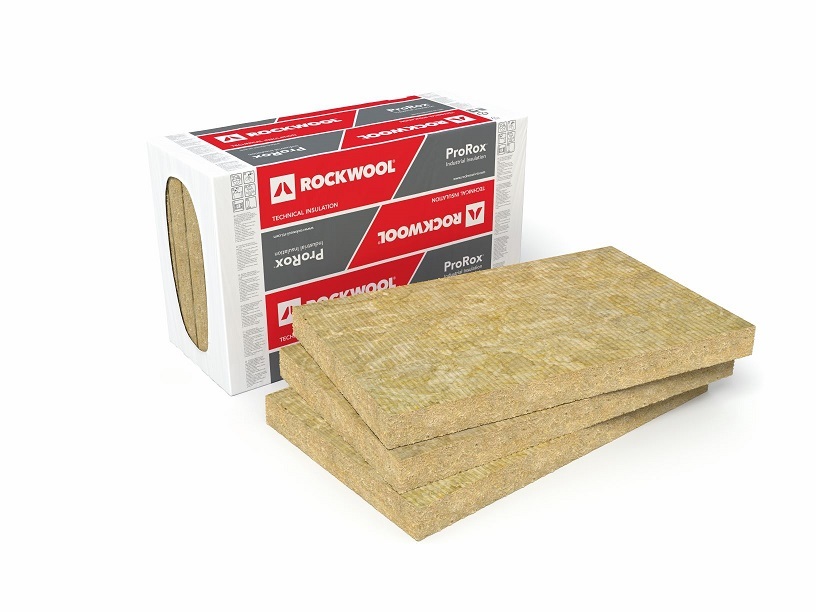

ProRox® SL 970
