ProRox® WM 950XC

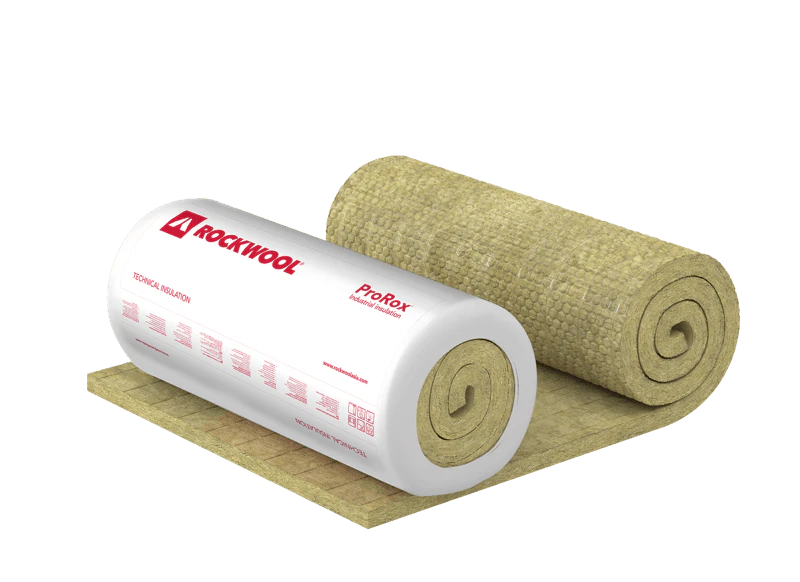

ProRox WM 950 XC is a lightly bonded stone wool insulation mat stitched on galvanized wire mesh with galvanized wire. Stainless steel mesh and binding wire (SW) are available upon request preserving its excellent thermal performance in use.
1/1
Application
- Industrial Insulation
Product Description
ProRox WM 950 XC is a lightly bonded stone wool insulation mat stitched on galvanized wire mesh with galvanized wire. Stainless steel mesh, stainless steel binding wire are available upon request. The wired mat is suitable for the thermal and acoustic insulation of industrial installations exposed to the environment when high-temperature resistance is demanded, such as industrial pipework, reactors and hot columns at petrochemical plants and refineries.
- Lightweight to support lower fuel costs
- Resists water absorption to deliver long-term durability
- Non-combustible and fire resistant
- Excellent acoustic performance for noise control
Product Benefits
- Suitable for high temperature application
- Flexible application
- Available in a wide range of thicknesses
- Suitable for use over stainless steel
Application
The wired mat is suitable for the thermal and acoustic insulation of industrial installations exposed to the environment, such as outdoor industrial pipework and equipment at petrochemical plants and refineries.
Thermal Conductivity
| Name | Unit | Value |
|---|---|---|
| Thermal conductivity (50 °C) | W/m∙K | 0.039 |
| Thermal conductivity (100 °C) | W/m∙K | 0.046 |
| Thermal conductivity (150 °C) | W/m∙K | 0.054 |
| Thermal conductivity (200 °C) | W/m∙K | 0.062 |
| Thermal conductivity (250 °C) | W/m∙K | 0.072 |
| Thermal conductivity (300 °C) | W/m∙K | 0.082 |
Technical Properties
| Name | Unit | Value |
|---|---|---|
| Surface burning characteristics | Flame spread index ≤ 25; Smoke development index ≤ 50 | |
| Water absorption | kg/m² | ≤ 1,0 kg/m² |
| Maximum service temperature | °C | 640 |
Product Variant

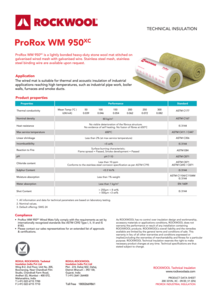

Downloads
ProRox WM 950 XC
