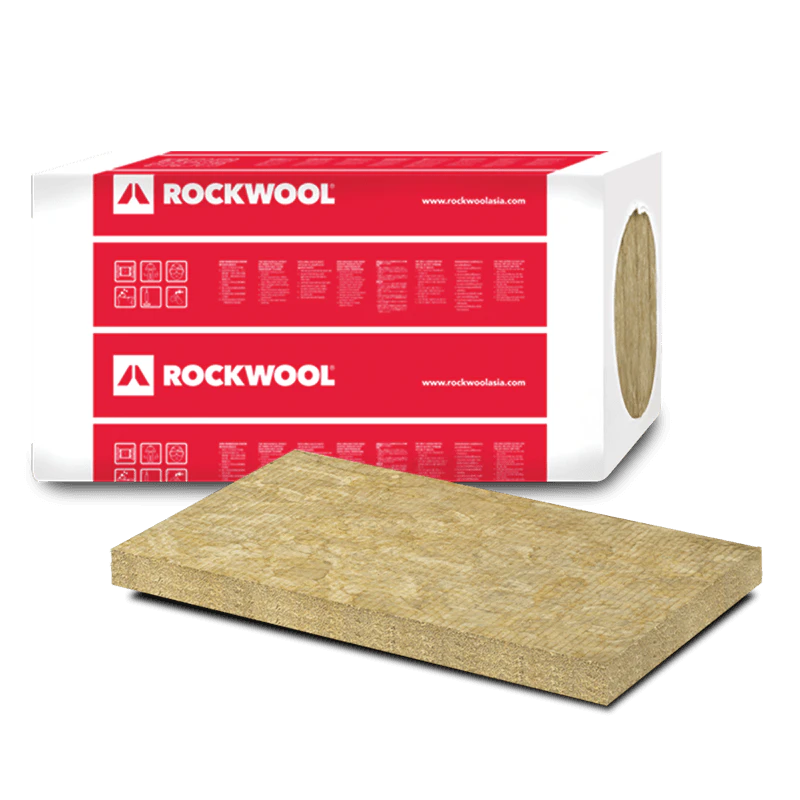

Curtainrock®
ROCKWOOL CURTAINROCK® 80 is a stone wool insulation board designed for a variety of curtain wall systems i.e. Perimeter Fire Containment System and Through-Penetration Firestop System.
1/1
Application
- External Wall Insulation
- Unitized Curtain Wall
- Passive Fire Protection
- Fire Penetration
Product Description
Curtainrock 80 is a lightweight, semirigid stone wool insulation board designed to provide enhanced fire protection in curtain wall and perimeter fire cotnainment systems. These products are non combustible and fire resistand and will not develop smoke or promote flame spread when exposed to fire.
- Fire Resistant Insulation
- Non-combustible Insulation
Product Benefits
- Contributes to excellent fire performance for curtain wall system and provides up to 2 hours fire rating
- Lightweight semirigid insulation stone wool board designed to provide enhanced fire protection in curtain wall and perimeter fire containment systems.
- Non - combustible
- Flexible, tested and used in conjunction with othermajor fire-stopping products as a perimeter fire sealing system
- Can be used for floor slab without upstand beam construction
- Can be installed at site or prefabricated in the factory. Ease of installation with various installation options
Application
Mainly applied on Curtain wall insulations , external walls on commercial buildings and high rise and multiple storey buildings. It is the ideal material of choice for curtain wall system applications, either as the backpan of curtain wall or as a fire safing and smoke seal at gaps.
Thermal Conductivity
| Name | Unit | Value |
|---|---|---|
| Thermal conductivity | W/m∙K | 0.037 |
Technical Properties
| Name | Unit | Value |
|---|---|---|
| Reaction to Fire | Euroclass | A1 |
| Water Absorption | kg/m2 | 1 |
| Water Vapour Absorption | % | 0.04 |
Downloads

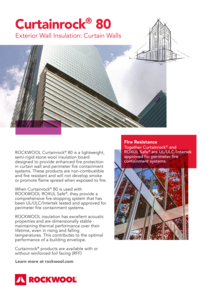

Curtainrock 80 100 301-0825 V3 (EN)
Curtainrock 40 100 300-0825 V3 (EN)
Related Product
Internal Wall Insulation

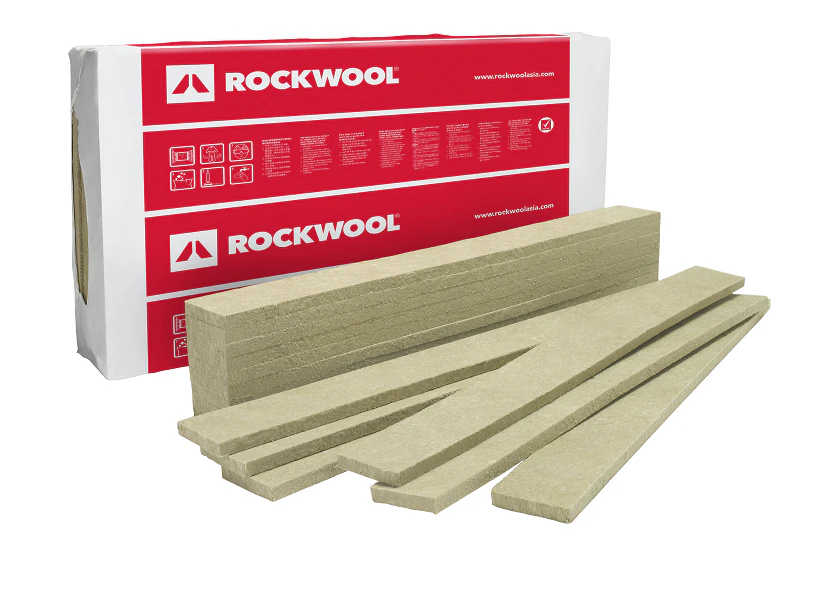

Spanrock
